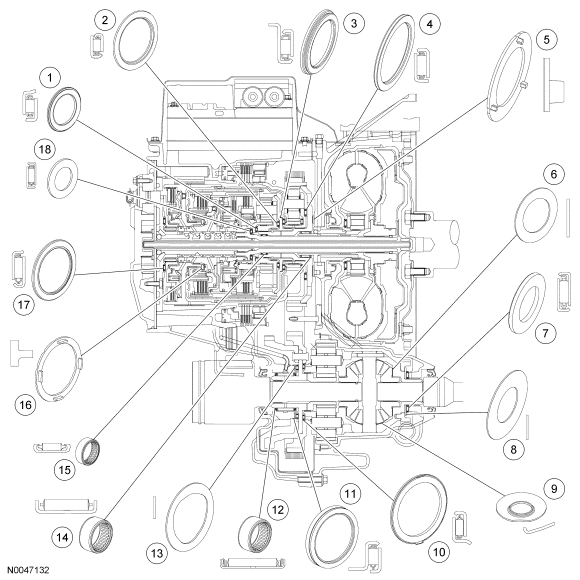

Bushings, Bearing and Thrust Washer Locator
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H207 | Bearing - low/intermediate sun gear thrust (No. 5) |
| 2 | 7H028 | Bearing - low/intermediate carrier thrust (No. 6) |
| 3 | 7D234 | Bearing - reverse/overdrive sun gear thrust (No. 7) |
| 4 | 7H030 | Bearing - reverse/overdrive ring gear thrust (No. 9) |
| 5 | 7G099 | Washer - drive sprocket thrust (No. 10) |
| 6 | 4228 | Washer - differential side gear thrust |
| 7 | 7G112 | Bearing - differential (No. 15) |
| 8 | 7F119 | Shim - differential bearing (No. 14) |
| 9 | 4230 | Washer - differential pinion thrust |
| 10 | 7G233 | Washer - driven sprocket thrust (No. 13) |
| 11 | 7G247 | Bearing - driven sprocket (No. 12) |
| 12 | 7G355 | Bearing - driven sprocket (No. 18) |
| 13 | 7H086 | Shim - driven sprocket (No. 11) |
| 14 | 7H032 | Bearing - stator support (No. 17) |
| 15 | 7H029 | Bearing - reverse/overdrive ring gear (No. 16) |
| 16 | 7G116 | Washer - direct clutch thrust (No. 2) |
| 17 | 7H241 | Bearing - pump support thrust (No. 1) |
| 18 | 7H026 | Bearing - turbine shaft thrust (No. 4) |
