Removal (Dual Rear Wheels)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel.
  2. On models with forward-of-axle brake calipers, remove stone shield. See Figure. On all models, remove anchor plate and caliper assembly. See DISC BRAKE CALIPERS & PADS .
  3. Remove axle shaft retaining bolts and axle shaft. See Fig 1. Remove and discard the axle shaft "O" ring seal. See Fig 2.
    4. NOTE: Ensure that the drive tangs on the special tool engage the four slots of the hub nut.
  4. On F350 with Dana axle, using Wheel Hub Nut Socket (T88T-4252-A), or equivalent, remove hub nut. See Fig 3.
  5. On F450 and F550 with Ford axle, using a suitable socket, and in correct rotation, remove hub nut.
  6. On all models, remove outer bearing. Remove hub and rotor assembly. Remove rotor-to-hub bolts and separate rotor from hub.
  7. Inspect the rear hub for cracks and damage around the bolt holes. Check for oversized bolt holes.
Fig 1: Removing Axle Shaft
G00299598Courtesy of FORD MOTOR CO.
Fig 2: Identifying Rear Axle Shaft "O" Ring
G00299602Courtesy of FORD MOTOR CO.

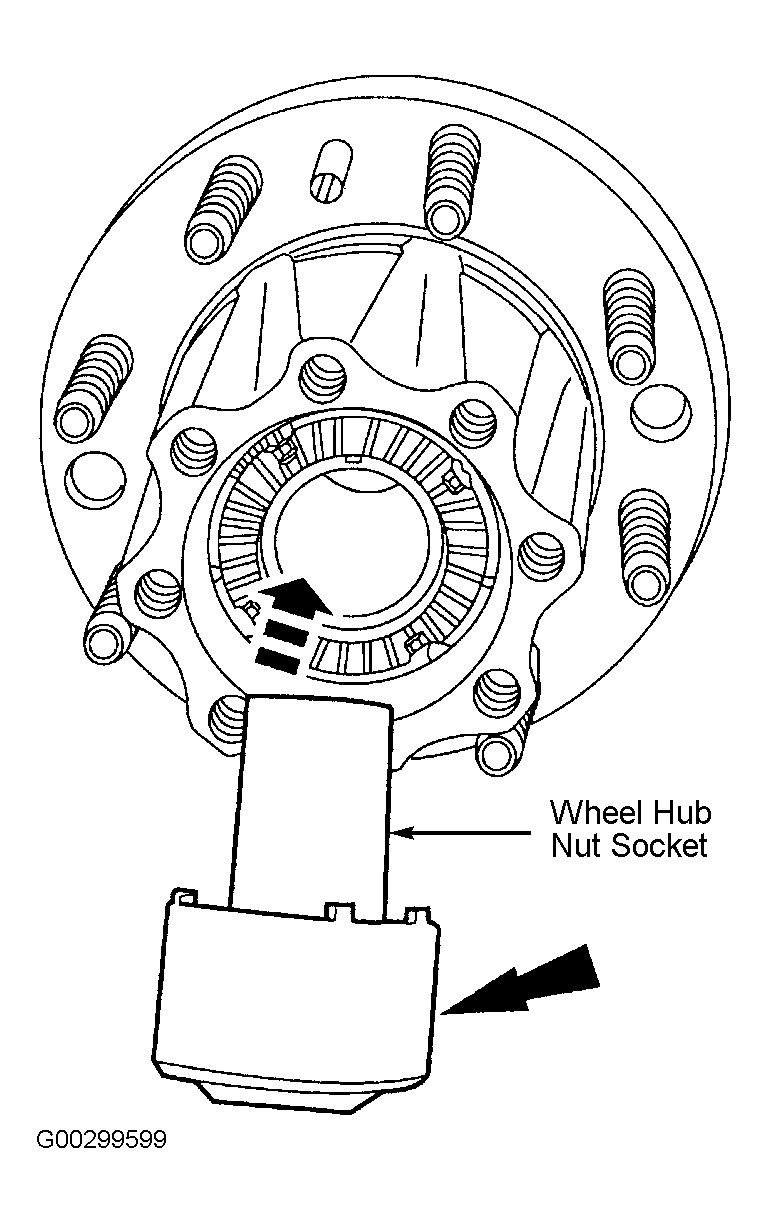

Fig 3: Removing Rear Wheel Hub Nut (F350 - Dana Axle)
G00299599Courtesy of FORD MOTOR CO.
