Removal (4WD Models)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. Remove wheel.
Remove anchor plate and caliper assembly. See DISK BRAKE CALIPERS & PADS .
On models with single rear wheels, remove rotor.
On models with dual rear wheels, remove hub plate extender nuts, and remove hub extender plate. Remove rotor. See Fig 1 and Fig 2 .

NOTE: If excessive force is used when removing rotor, it should be checked for lateral runout prior to installation.

Fig 1: Identifying Hub Extender Nuts

Courtesy of FORD MOTOR CO.

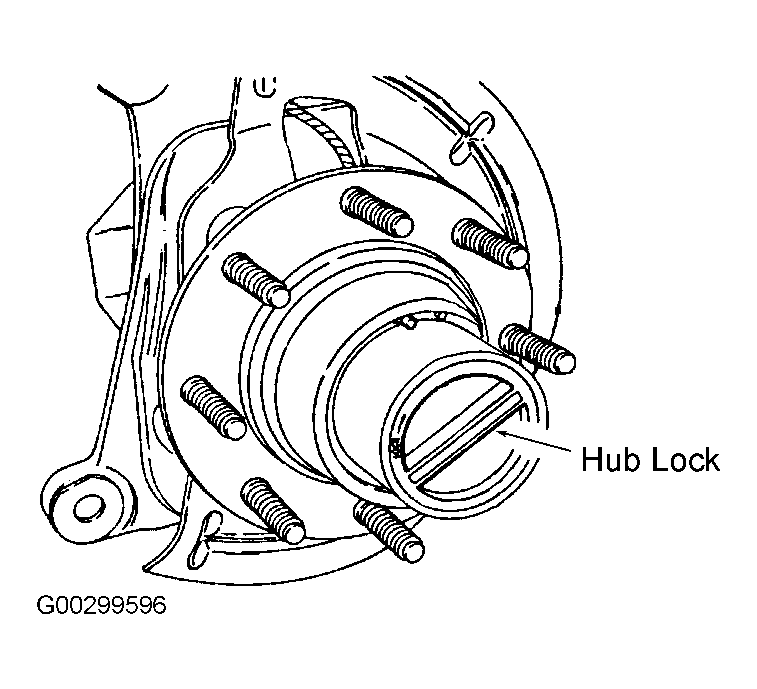

Fig 2: Identifying Front Hub (Rotor Removed)

Courtesy of FORD MOTOR CO.
