Removal & Installation (Diesel)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum pump harness connector. See Fig 1.
  2. Remove the vacuum pump mounting bolts. See Fig 2.
  3. Disconnect the vacuum hose and remove the vacuum pump and bracket. See Fig 3.
  4. Remove the three ISO mounts and remove the vacuum pump from the bracket. See Fig 4.
  5. To install, reverse removal procedure.

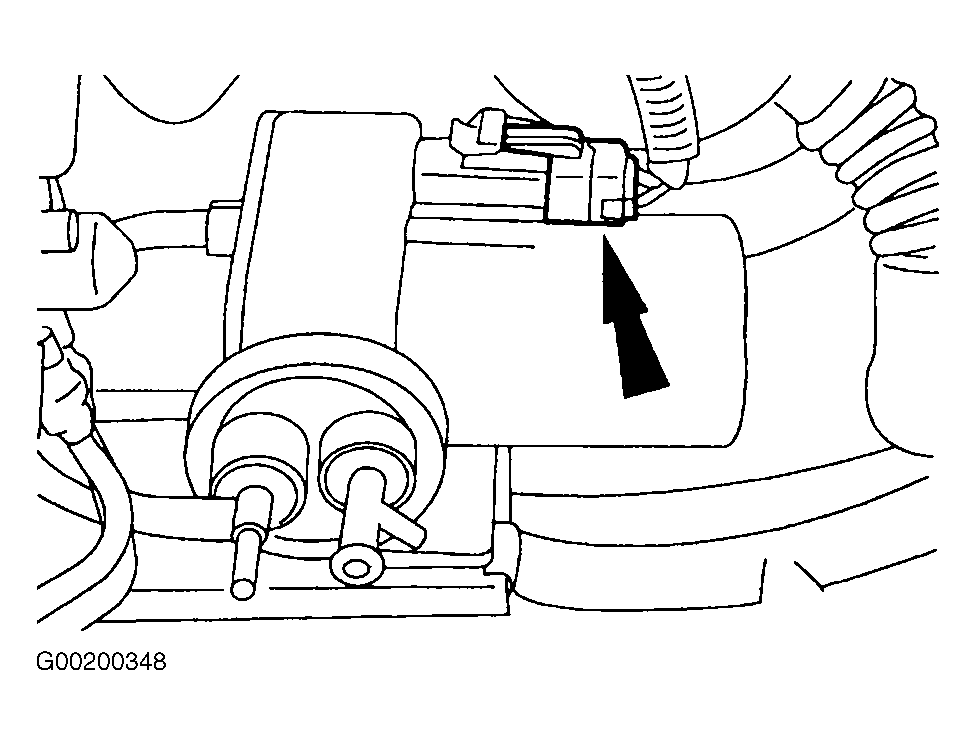

Fig 1: Identifying Vacuum Pump Harness Connector (Diesel)
G00200348Courtesy of FORD MOTOR CO.

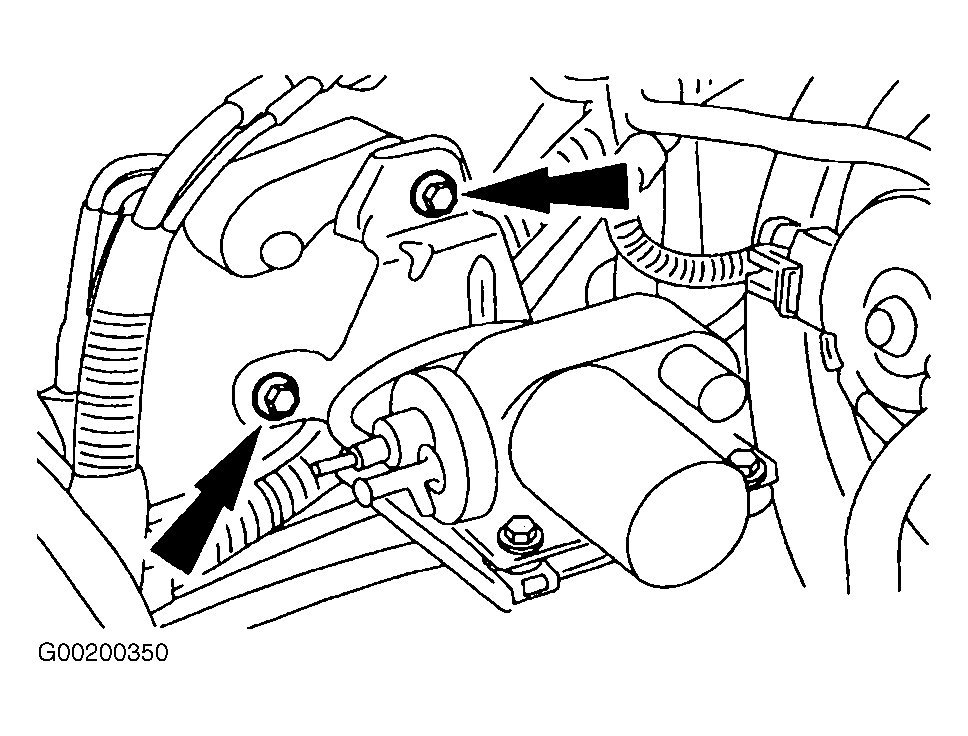

Fig 2: Identifying Vacuum Pump Mounting Bolts (Diesel)
G00200350Courtesy of FORD MOTOR CO.

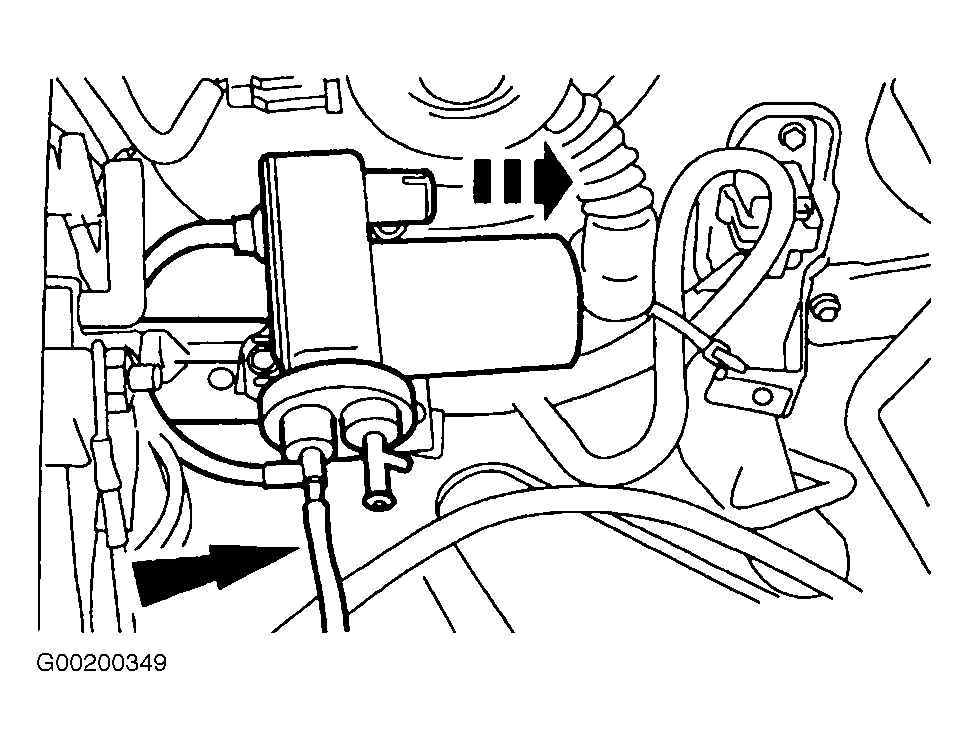

Fig 3: Removing Vacuum Pump (Diesel)
G00200349Courtesy of FORD MOTOR CO.
Fig 4: Identifying Vacuum Pump ISO Mounts (Diesel)
G00299591Courtesy of FORD MOTOR CO.
