Vacuum Pump (Diesel)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Vacuum is supplied from a electric motor vacuum pump. See Fig 1.

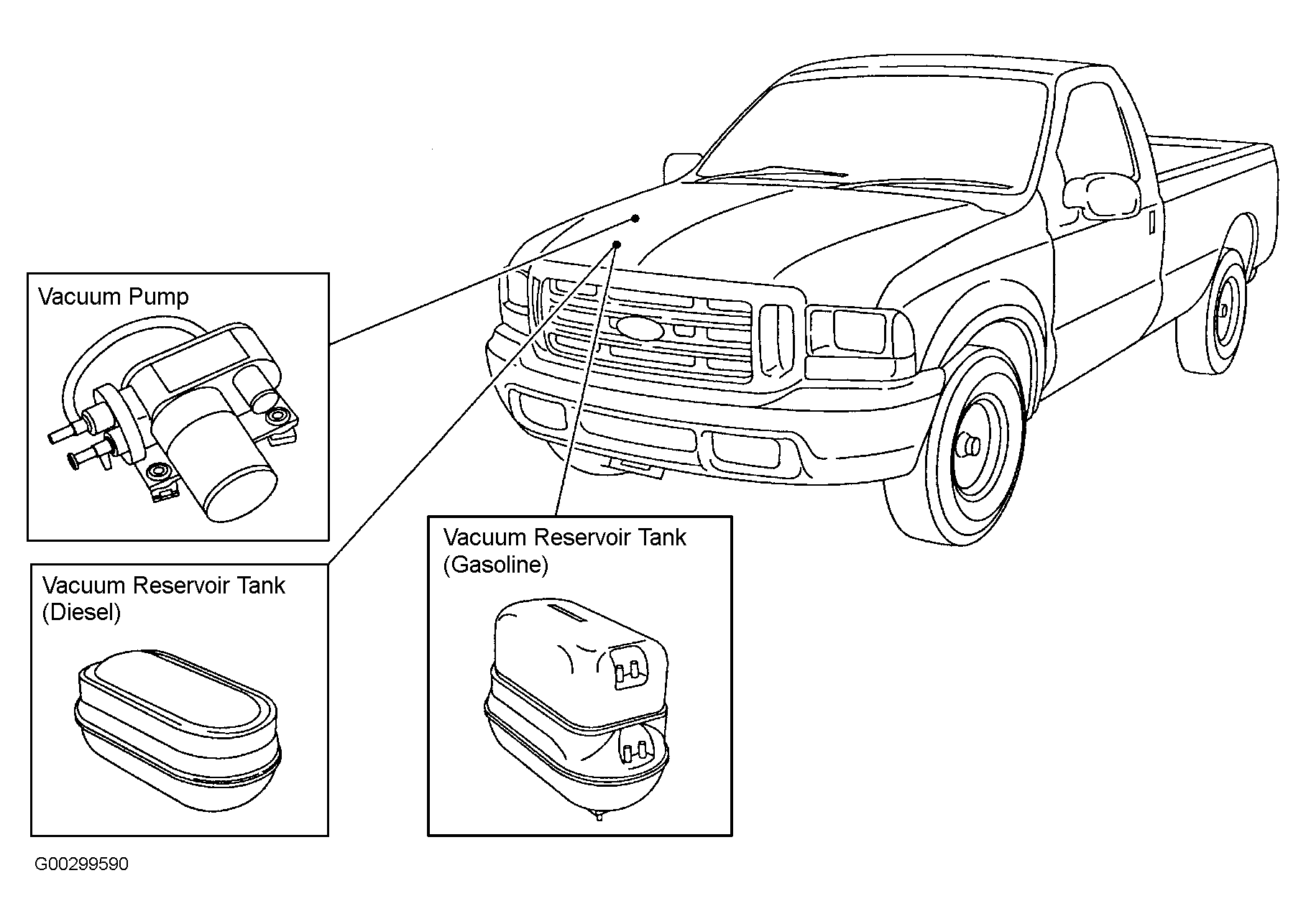

Fig 1: Locating Vacuum Pump & Vacuum Reservoir
G00299590Courtesy of FORD MOTOR CO.
