Base Engine Calibration Information
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2008 Mercury Sable, 2008 Mercury Mountaineer, 2008 Mercury Milan, 2008 Mercury Mariner, and 2008 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

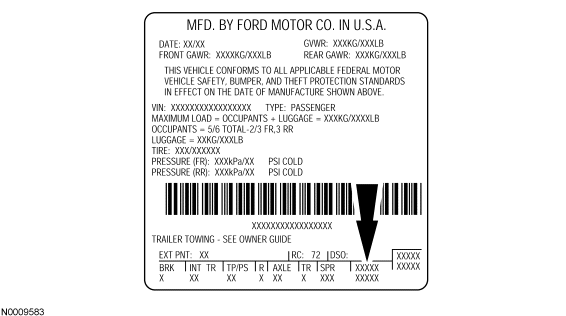

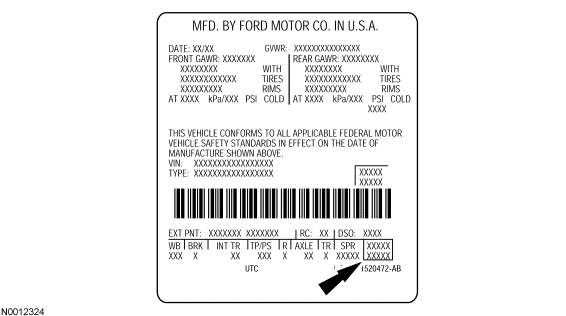

Base engine calibration information, also sometimes referred to as the powertrain calibration, is located in the lower right corner of the vehicle certification label. Engine calibration information is limited to a maximum of 5 characters per line (2 lines maximum). Calibration information more than 5 characters long wrap to the second line of this field. Only the base calibration appears on this label. The revision level is no longer printed on the label, however, it can be found in the On-Line Automotive Service Information System (OASIS). For additional information on the vehicle certification label or engine calibration, refer to the IDENTIFICATION CODES -- E-SERIES .
