Air Conditioning Pressure (ACP) Transducer Sensor

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2008 Mercury Sable, 2008 Mercury Mountaineer, 2008 Mercury Milan, 2008 Mercury Mariner, and 2008 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

The ACP transducer sensor is located in the high pressure (discharge) side of the A/C system. The ACP transducer sensor provides a voltage signal to the PCM that is proportional to the A/C pressure. The PCM uses this information for A/C clutch control, fan control and idle speed control.

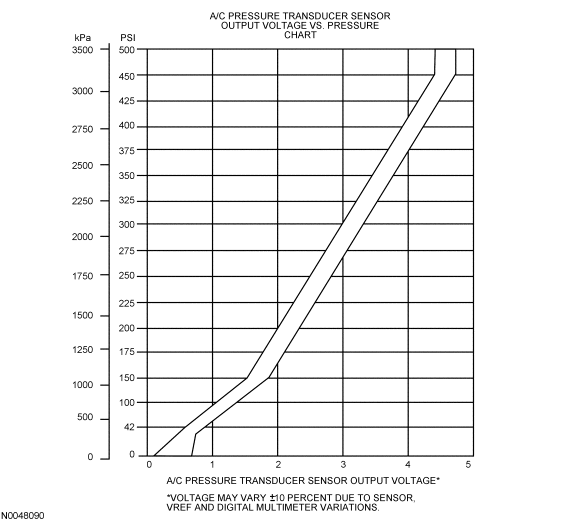

Fig 1: A/C Pressure Transducer Sensor Output Voltage Vs. Pressure Chart
GF0001430Courtesy of FORD MOTOR CO.
Fig 2: Typical ACP Transducer Sensor
GF0001431Courtesy of FORD MOTOR CO.
