Climate Control System: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool | ||
| R-134a Manifold Gauge Set | 176-R032A or equivalent | |
| Connector, Refrigerant Pressure Line | 412-093 (T94P-19623-E) | |
| Set, A/C Fittings | 412-DS028 (D93L-19703-B) or equivalent | |
| Refrigerant Leak Detector | 216-00001 or equivalent | |
| Pressure Tester | 014-R1072 or equivalent | |
| 73III Automotive Meter | 105-R0057 or equivalent |

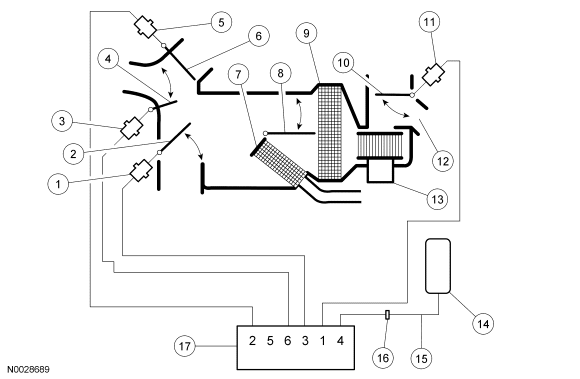

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Vacuum control motor (floor mode door) |
| 2 | - | Floor mode door |
| 3 | - | Vacuum control motor (panel vent mode door) |
| 4 | - | Panel vent mode door |
| 5 | - | Vacuum control motor (defrost mode door) |
| 6 | - | Defrost mode door |
| 7 | - | Heater core |
| 8 | - | Temperature blend door |
| 9 | - | Evaporator core |
| 10 | - | Air inlet door |
| 11 | - | Vacuum control motor (outside air inlet door) |
| 12 | - | Recirculated air inlet |
| 13 | - | Blower motor |
| 14 | - | Vacuum reservoir |
| 15 | - | To engine intake manifold |
| 16 | - | Vacuum check valve |
| 17 | - | Function selector switch |
NOTE:
A leak in the vacuum control circuit may occur during acceleration (slow leak), may exist at all times (large leak) or may exist only when specific functions are selected (indicating a leak in that portion of the circuit). The vacuum hoses used in the passenger compartment control circuit are constructed from PVC plastic material. The vacuum hoses used in the engine compartment are constructed of Hytrel®. Because of the materials used, never pinch off the vacuum hoses to locate a leak during diagnosis. A golf tee can be used as a plug when it is necessary to plug one end of the vacuum hose for leak test purposes.
FUNCTION SELECTOR SWITCH VACUUM APPLICATION CHART - HYBRID
| Port | Color | Function | Function Selector Switch Position | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAX A/C | A/C Recirc | A/C | Panel | OFF | Panel/ Floor | Floor | Floor/ DEF | DEF | |||
| 1 | WH | Recirc | V | V | NV | NV | V | NV | NV | NV | NV |
| 2 | YE | Defrost | V | V | V | V | V | V | V | NV | NV |
| 3 | RD | Floor | NV | NV | NV | NV | V | V | V | V | NV |
| 4 | - | Not used | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 5 | BK | Source | V | V | V | V | V | V | V | V | V |
| 6 | OG | Panel/Floor | V | V | V | V | NV | V | NV | NV | NV |
| V=Vacuum NV=No vacuum |
|||||||||||
