Removal & Installation

WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear brake drum. See BRAKE DRUM .
Remove brake shoes. See BRAKE SHOES .
Disconnect the brake line fitting from the wheel cylinder. See Fig 1 .
Remove the mounting bolts. Remove the wheel cylinder. See Fig 1 .
To install, reverse removal procedure. Adjust brakes, and bleed hydraulic system. See BLEEDING BRAKE SYSTEM .

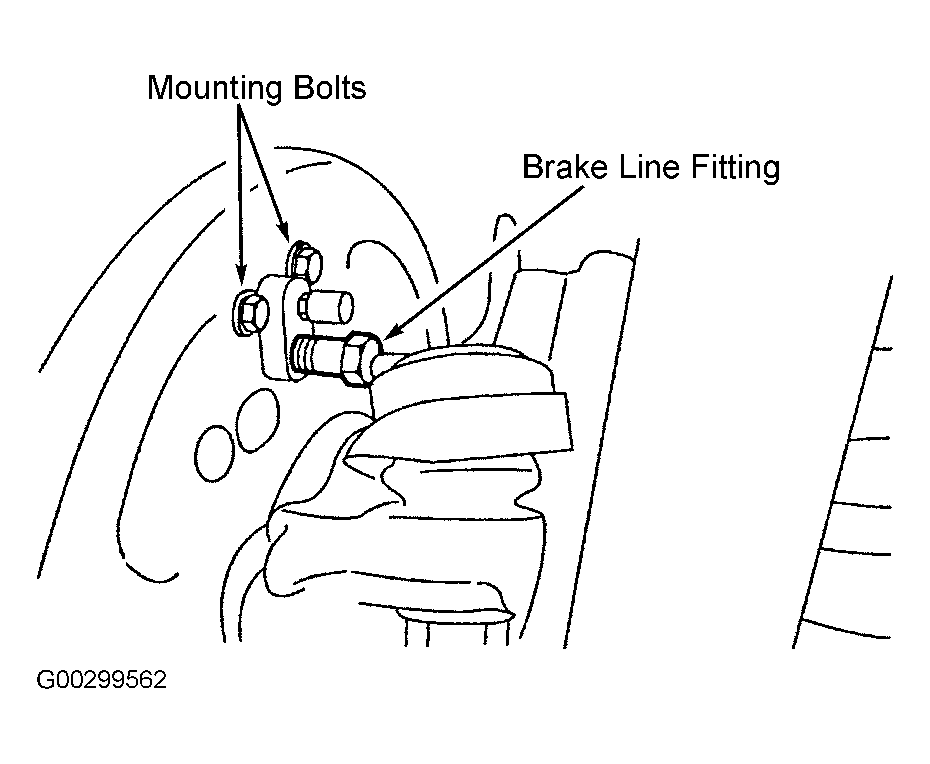

Fig 1: Identifying Wheel Cylinder Mounting Bolts & Brake Line Fitting

Courtesy of FORD MOTOR CO.
