Removal & Installation
WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the parking brake control. See PARKING BRAKE CONTROL .
- On vehicles with floor console, remove the 2 bolts and the floor console bracket. See Fig 2 .
- On vehicles without floor console, remove the left front seat. See REMOVAL & INSTALLATION in appropriate POWER SEATS article.
- Remove the left front door scuff plate. See Fig 3 .
- Remove the left lower "A" pillar trim panel.
- Remove the left front safety belt.
- Pull back carpet to gain access to the console bracket.
- Remove the 2 bolts and the floor console bracket.
- On all vehicles, raise and support vehicle.

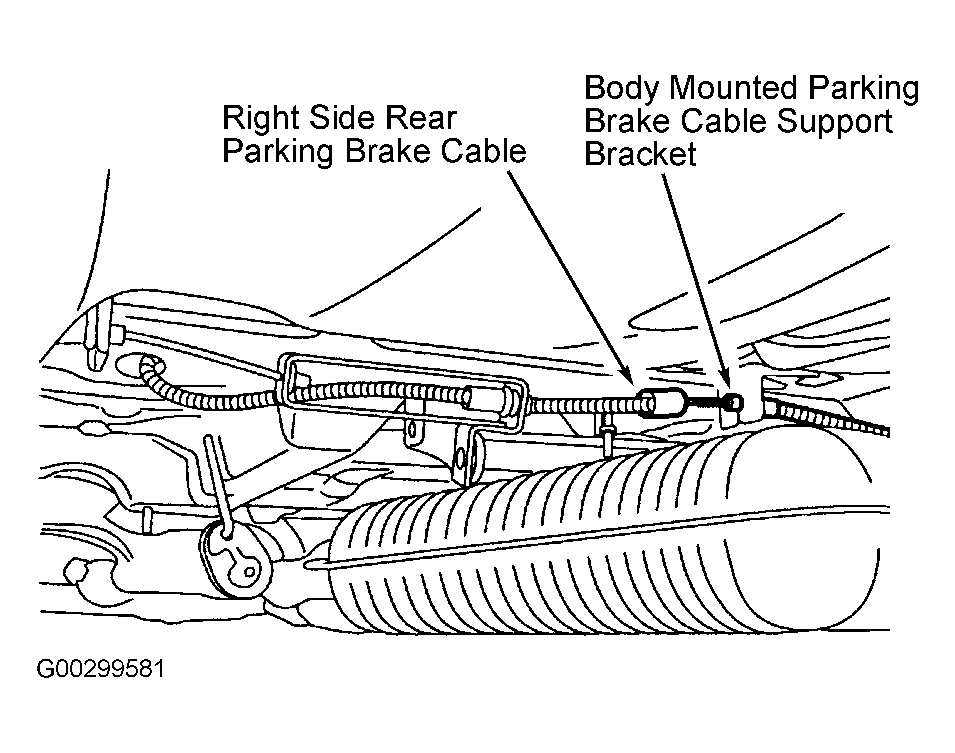

- Disconnect the parking brake cable from the right side rear parking brake cable. See Fig 1 . Disconnect the front parking brake cable from the parking brake cable equalizer.
- To install, reverse removal procedure.
