Wheel Cylinders: Disassembly
WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

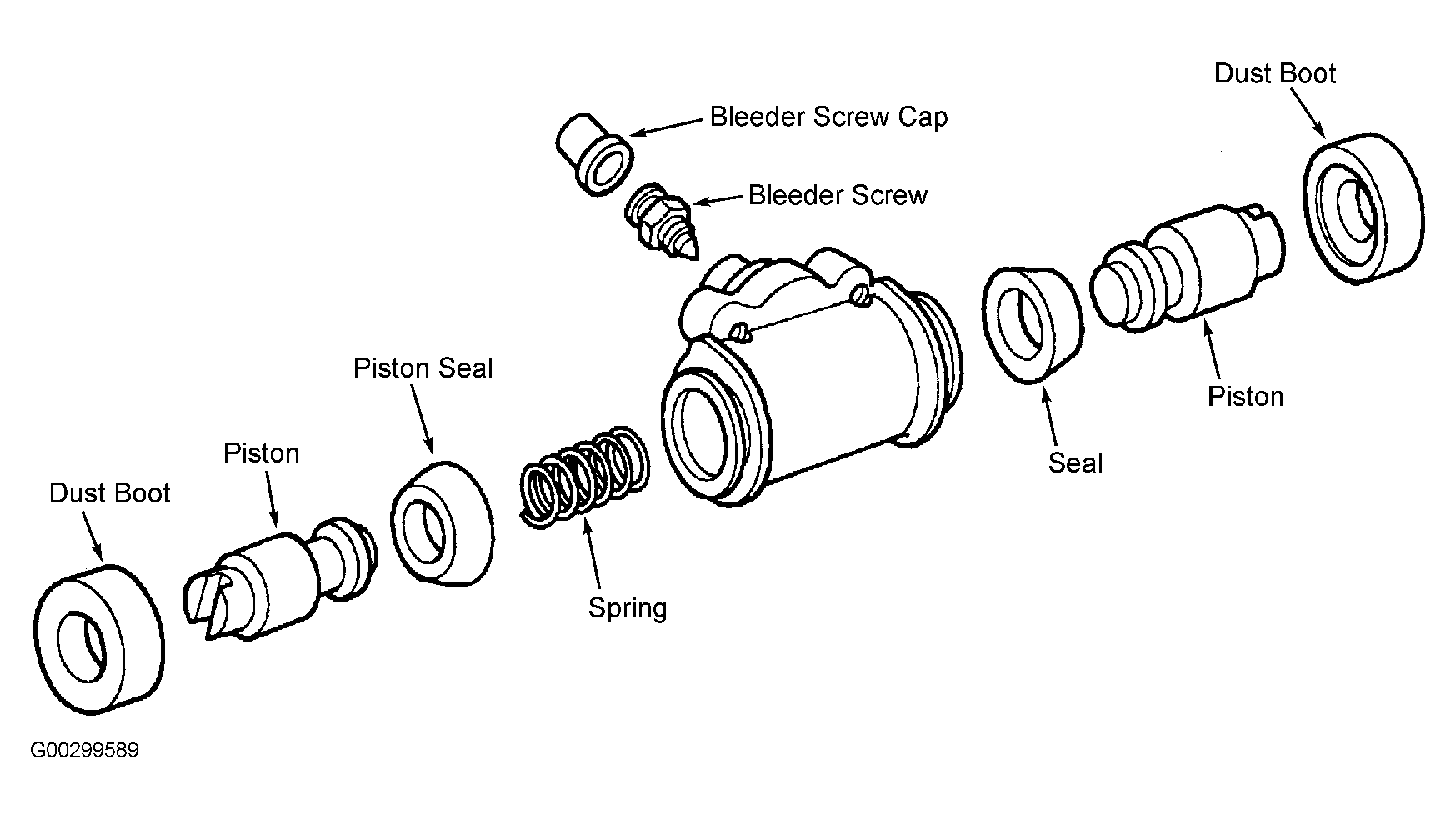

With wheel cylinder removed from vehicle, remove rubber boots from ends of cylinders. Remove pistons, piston cups and return spring from cylinder. Remove bleeder screw. Inspect cylinder bore for damage. See Fig 1 .
