Vehicle With Low Series Floor Console
WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

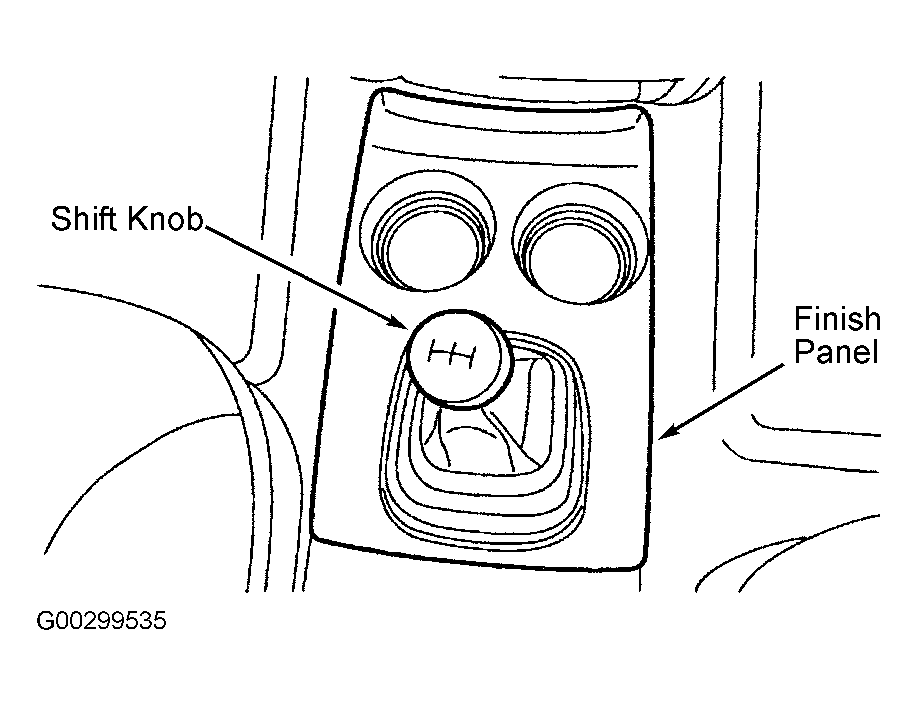

- If equipped, remove the manual transmission shift knob by turning counterclockwise. Remove the floor console front finish panel. See Fig 1 .
- Apply the parking brake. Remove the floor console rear finish panel.
- Remove the adjustment nut clip. See Fig 2 .
- Turn the parking brake control adjustment nut so that the parking brake control stroke is three to five notches when pulled.
- Confirm the parking brake is applied.
- Install the adjustment nut clip.
- To install, reverse removal procedure.
