Transaxle Cooling
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles with automatic transmissions are equipped with a transmission fluid cooler integral to the radiator which cannot be repaired separately. The integral transmission fluid cooler transfers heat from the transmission fluid to the engine coolant. The auxiliary transmission fluid cooler transfers heat from the transmission fluid to the outside air.
The transmission fluid cooling system, with an auxiliary transmission fluid cooler, consists of the following:
- An in-tank fluid cooler inlet tube
- A non-repairable in-tank transmission fluid cooler
- An in-tank fluid cooler return tube
- An auxiliary fluid cooler
- Optional cold weather cooler bypass valve (CBV)

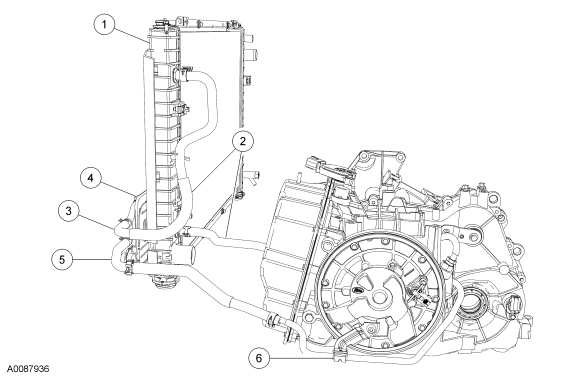

| Item | Part Number | Description |
|---|---|---|
| 1 | 8500 | Radiator |
| 2 | 7A030 | In-tank fluid cooler inlet and outlet tubes |
| 3 | 7A030 | Auxiliary fluid cooler inlet tube |
| 4 | 7H189 | Auxiliary fluid cooler |
| 5 | 7A030 | Auxiliary fluid cooler outlet tube |
| 6 | 7N291 | Fluid cooler tube bracket |
