Brake Master Cylinder: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |

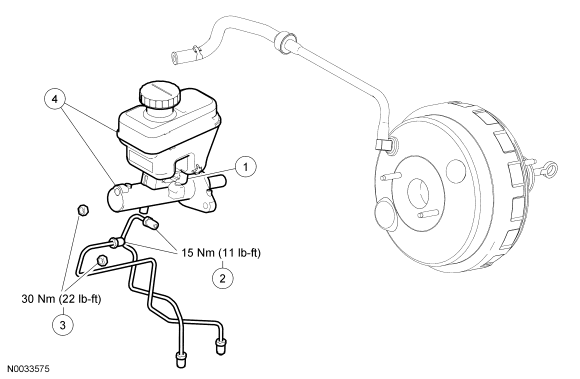

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level warning switch electrical connector |
| 2 | - | Brake tube fittings |
| 3 | W382802 | Master cylinder nuts (2 required) |
| 4 | 2140 | Brake master cylinder assembly |
