Hydraulic Control Unit (HCU) - Hybrid: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

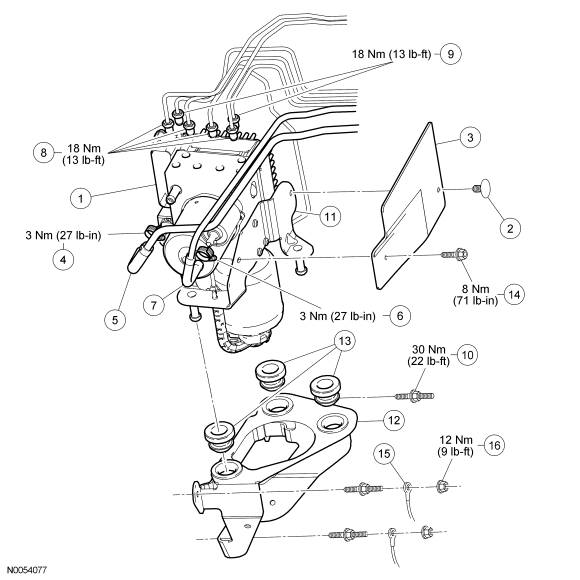

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Harness connector |
| 2 | - | Heat shield pin-type fastener (part of 2D000) |
| 3 | 2D000 | Heat shield |
| 4 | - | Brake fluid low pressure feed hose clamp (part of 2C058) |
| 5 | 2C058 | Brake fluid low pressure feed hose |
| 6 | - | Brake fluid low pressure return hose clamp (part of 2C059) |
| 7 | 2C059 | Brake fluid low pressure return hose |
| 8 | - | Brake tube-to-HCU fittings (10 mm) |
| 9 | - | Brake tube-to-HCU fittings (12 mm) |
| 10 | W711254 | HCU bracket-to-frame studs (3 required) |
| 11 | 2C555 | HCU |
| 12 | 2C549 | HCU bracket |
| 13 | 2C239 | Grommets (3 required) |
| 14 | W505260 | Heat shield bolt |
| 15 | - | Ground wire eyelet (2 required) |
| 16 | W705790 | Ground wire nut (2 required) |
