Rear Backing Plate (E150 & E250)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear brake shoes. See BRAKE SHOES (E150 & E250) .
  2. Remove the axle shaft or the axle shaft and rear hub. See appropriate DIFFERENTIALS article in DRIVELINE/AXLES.
  3. Compress the cable retainer and pull the parking brake rear cable and conduit from the brake backing plate. See Fig 1.
  4. Remove the rear wheel cylinder. See WHEEL CYLINDERS .
  5. Remove the four backing plate-to-axle flange nuts and bolts and the brake backing plate. See Fig 2.
  6. To install, reverse removal procedure.
Fig 1: Identifying Parking Brake Cable Retainer
G00297521Courtesy of FORD MOTOR CO.

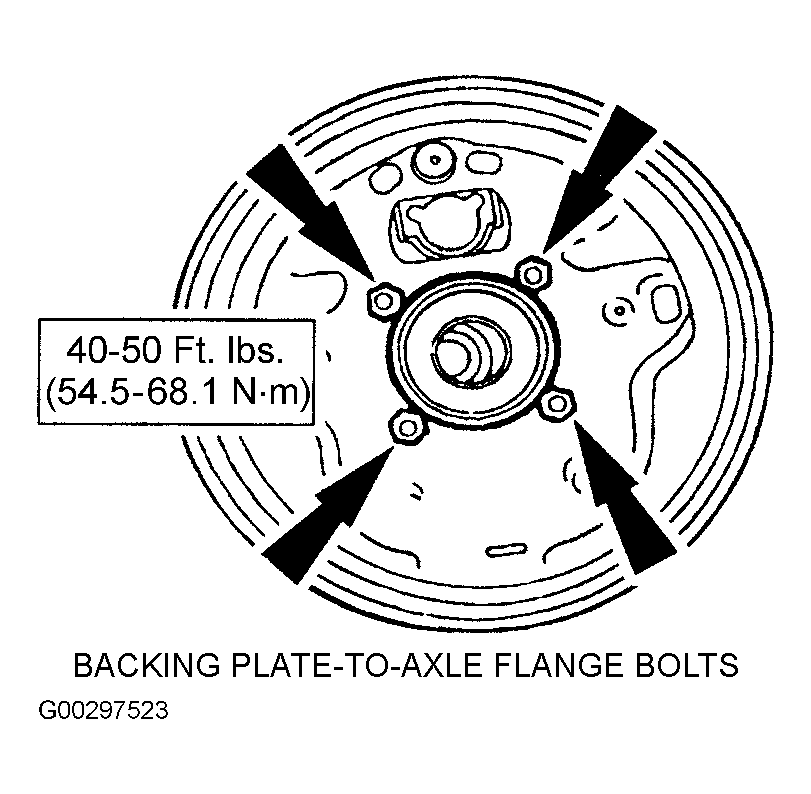

Fig 2: Backing Plate-To-Axle Flange Bolts With Torque Specifications
G00297523Courtesy of FORD MOTOR CO.
