Removal & Installation (Hydro-Max)
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.

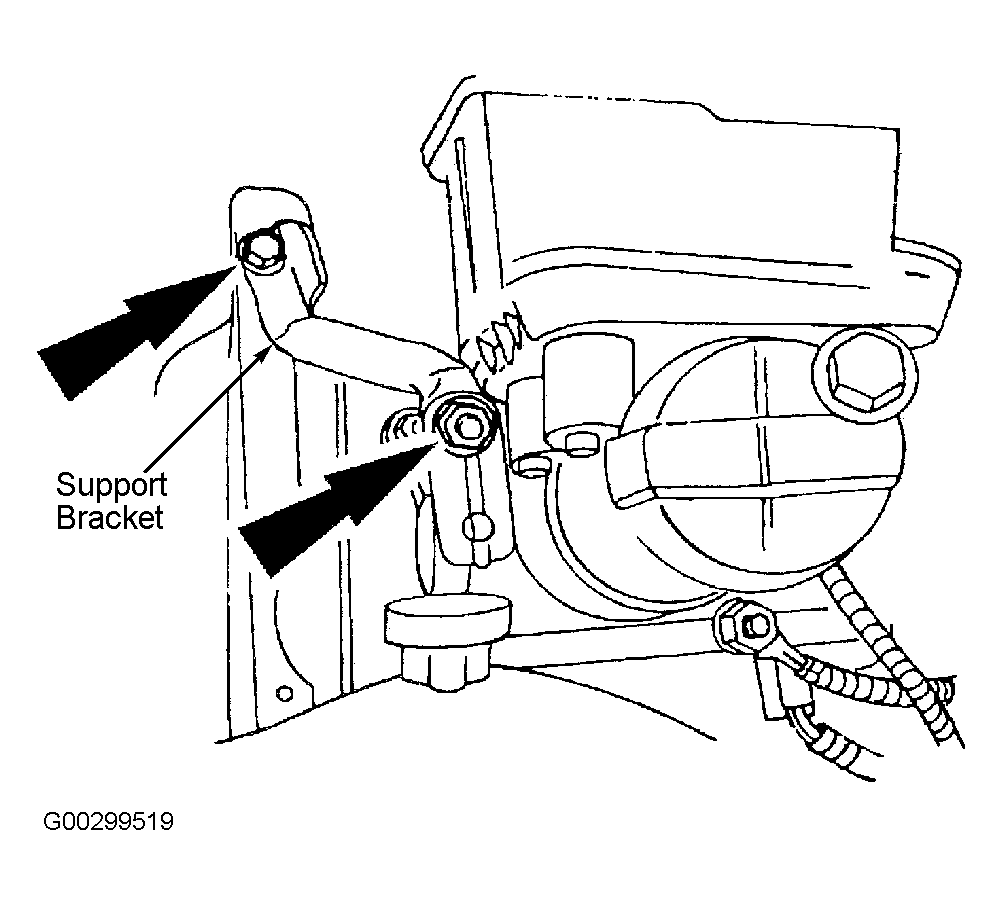

- Remove the support bracket bolt and nut. See Fig 1.
- Disconnect the brake tubes.

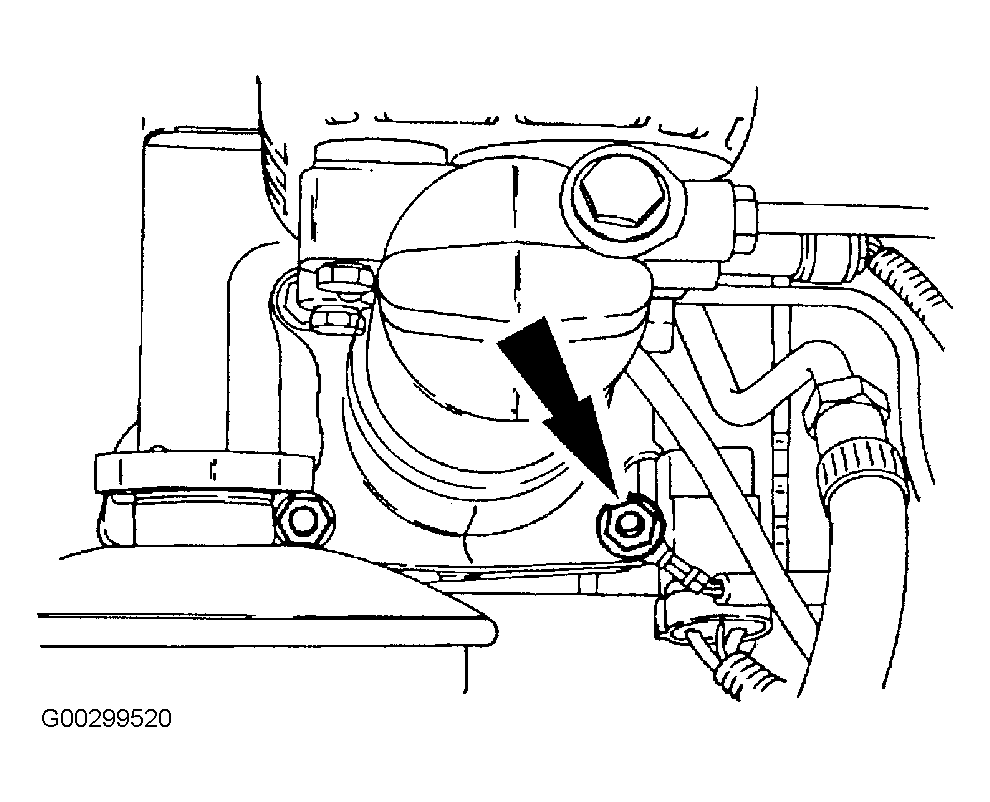

- Remove the ground wire nut and the ground wire. See Fig 2.
- Remove the four master cylinder nuts. Remove master cylinder.
- To install, reverse the removal procedure. Bleed system as necessary. See BLEEDING BRAKE SYSTEM .
