Hydro-Boost Unit: Removal

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With engine off, depress brake pedal several times to discharge accumulator.
  2. Disconnect negative battery cable. If equipped with dual batteries, remove left battery. Remove air cleaner housing.
  3. Remove the master cylinder. See MASTER CYLINDER .
  4. Disconnect the power steering pressure hoses. See Fig 1.
  5. Install NEW Teflon® seals on the power steering pressure fittings. See Fig 2.
  6. Disconnect the power steering return hose. See Fig 3.
  7. Remove the two nuts and the metal line retainer. See Fig 1.

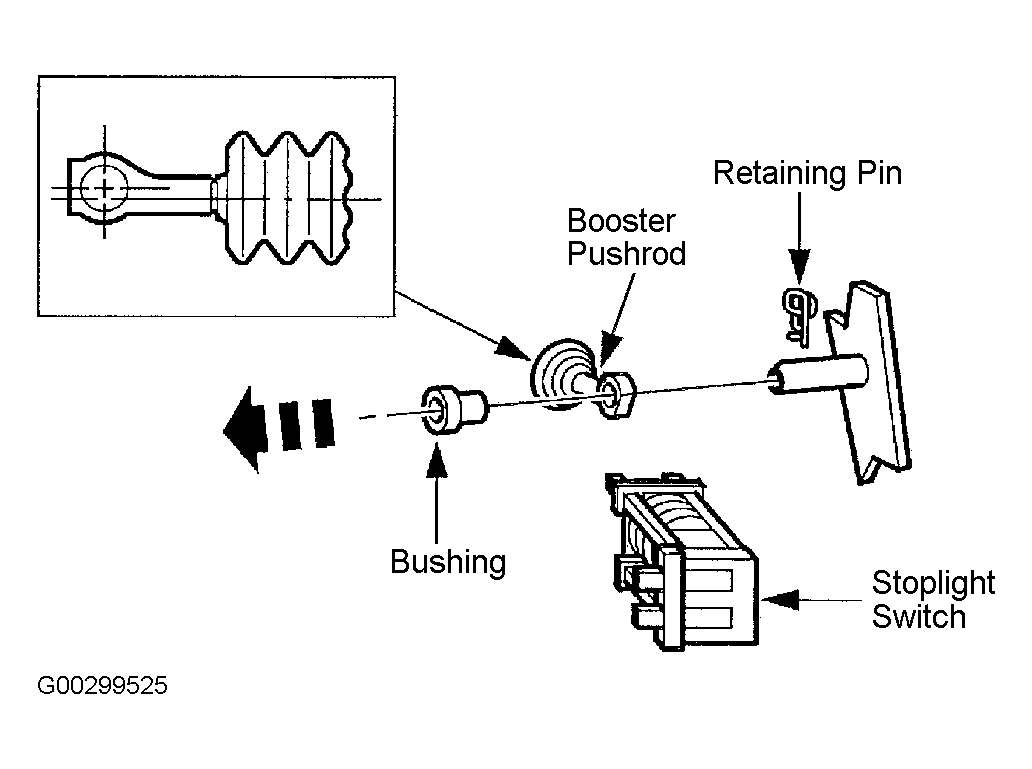

  8. Remove the stoplight switch self-locking pin. See Figure.
  9. Remove the stoplight switch and the brake booster push rod from the brake pedal pin.
  10. Remove the power brake booster nuts and remove the power brake booster. See Figure.
  11. To install, reverse removal procedure. Bleed Hydro-Boost and/or brake system as needed. See BLEEDING BRAKE SYSTEM .

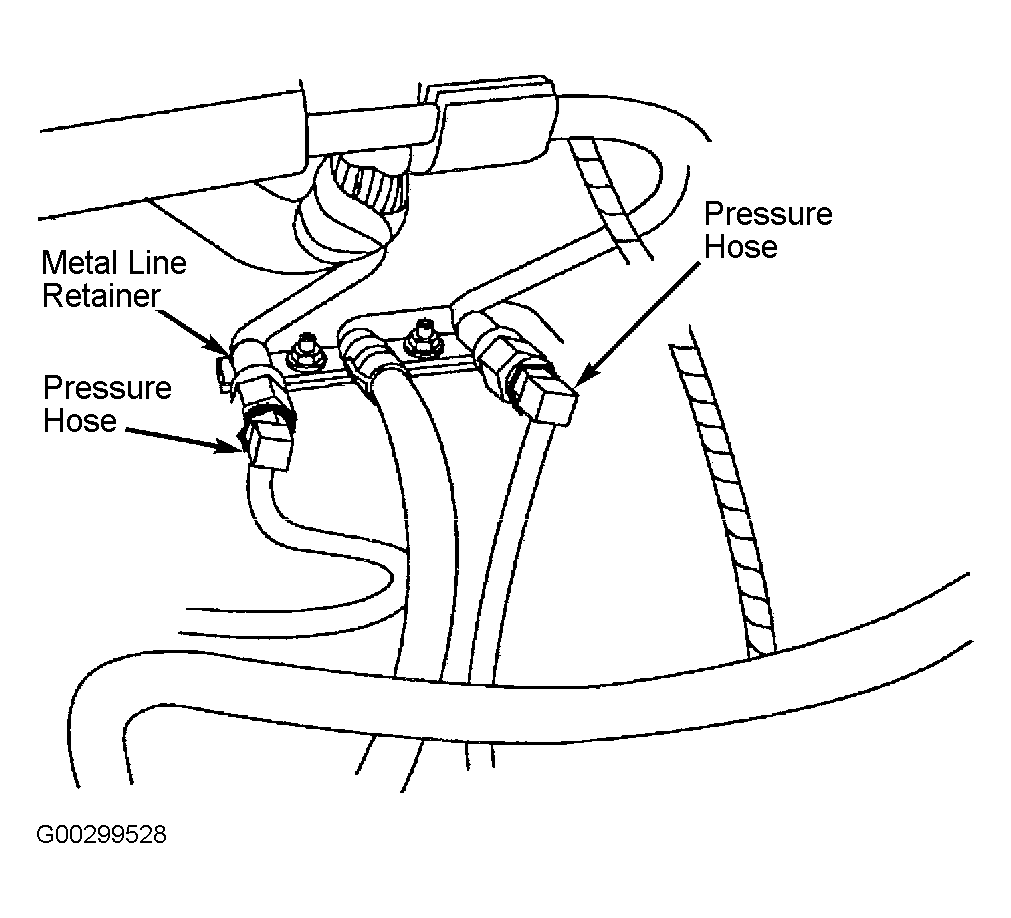

Fig 1: Identifying Power Steering Pressure Hoses
G00299528Courtesy of FORD MOTOR CO.
Fig 2: Identifying Teflon Seals
G00299529Courtesy of FORD MOTOR CO.

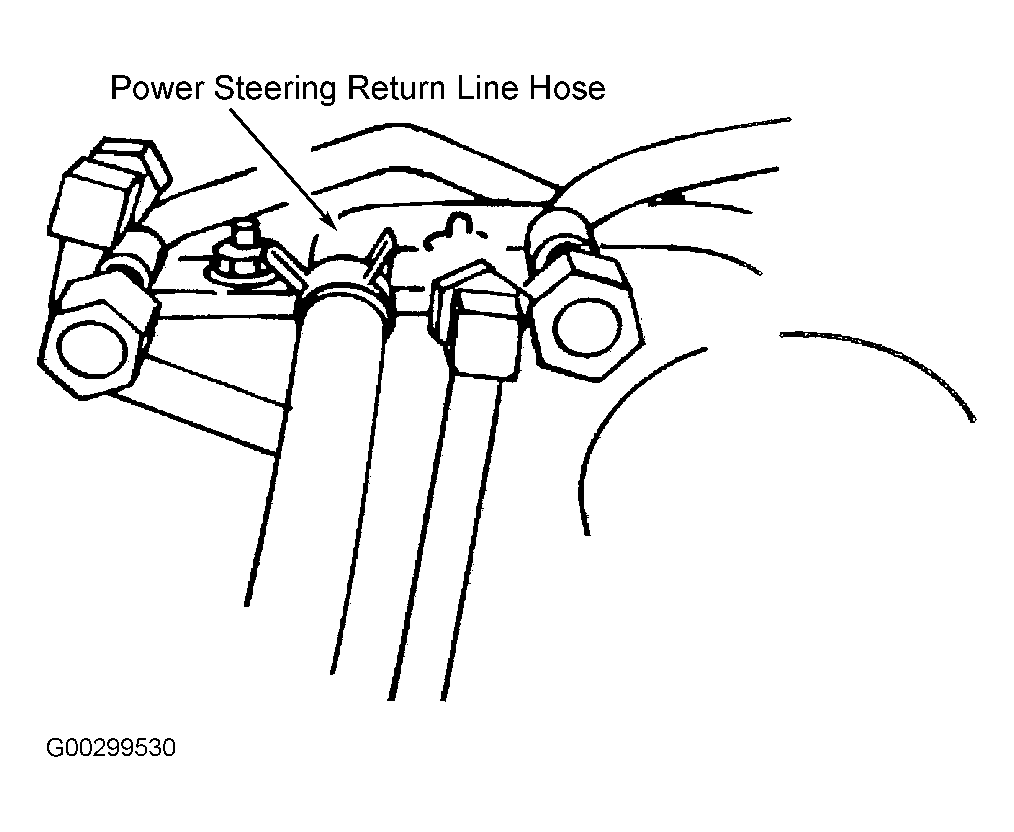

Fig 3: Identifying Power Steering Return Hose
G00299530Courtesy of FORD MOTOR CO.
