Front Brake Rotor: Removal

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel.
  2. Remove caliper pin bolts or anchor plate bolts and remove and position caliper assembly aside. See Figure-Figure .
  3. Inspect the brake disc and hub for minimum thickness. See Fig 1. Install a new brake disc and hub if worn to or below minimum thickness. See DISC BRAKE SPECIFICATIONS .
  4. On 2WD models, remove grease cap, cotter pin, nut, washer and outer bearing. See Figure-Figure . E550 grease cap is held on with screws and has a gasket between grease cap and hub. See Fig 2. Remove rotor. Remove inner bearing and grease seal.
  5. On 4WD models, remove rotor.

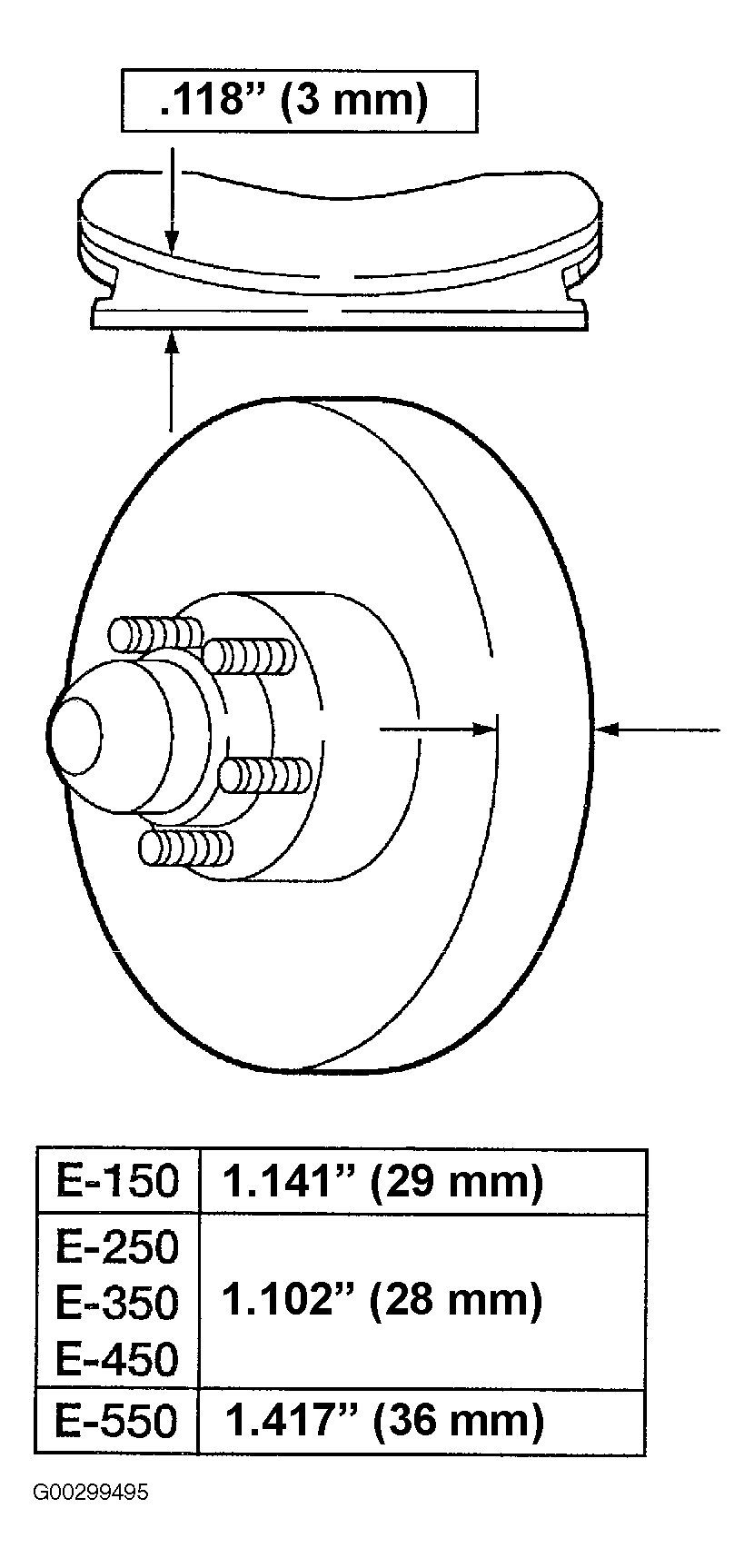

Fig 1: Measuring Disc & Pad Thickness
G00299495Courtesy of FORD MOTOR CO.

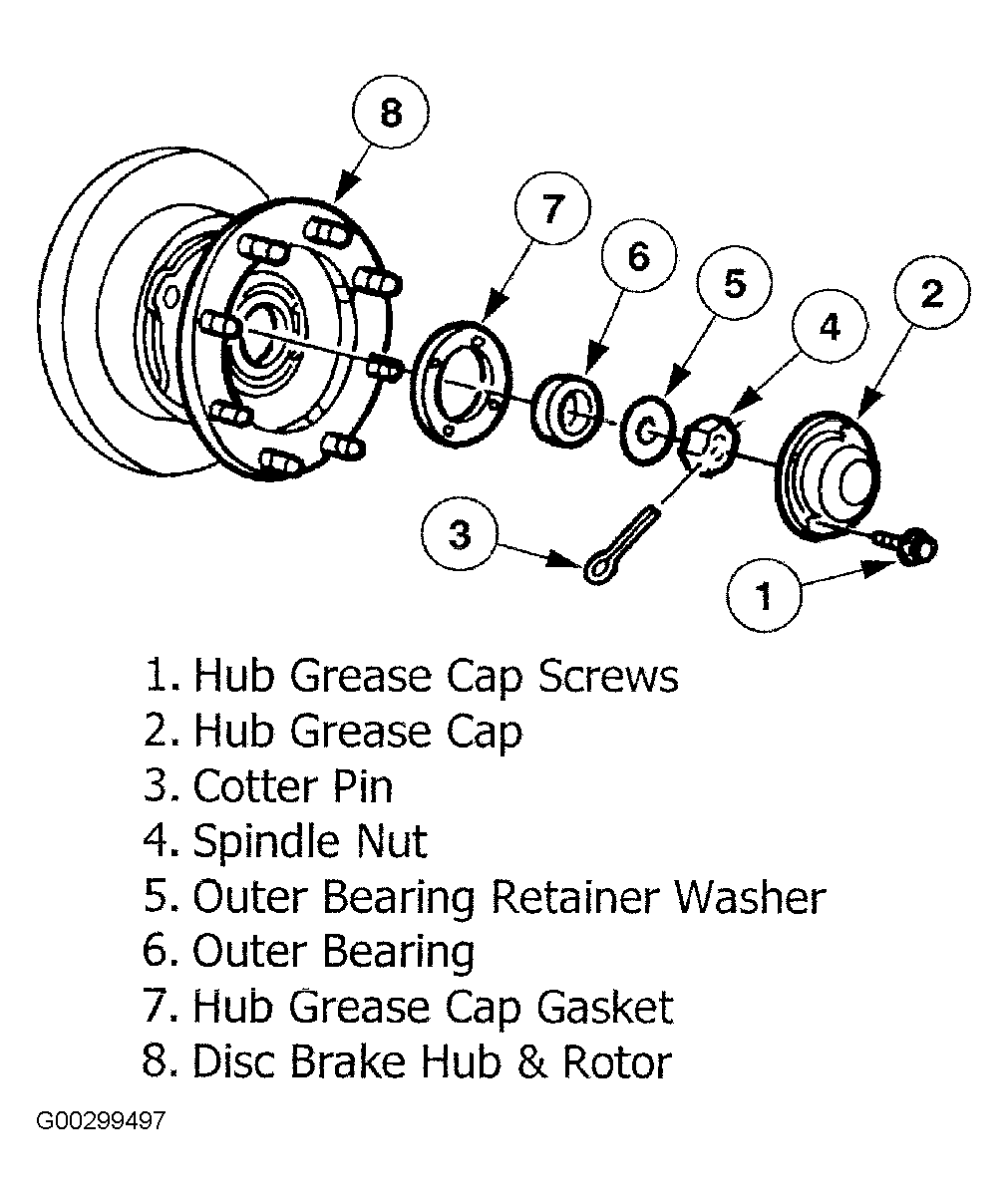

Fig 2: Identifying Front Hub Outer Bearing Components
G00299497Courtesy of FORD MOTOR CO.
