Removal & Installation (Motorhome Chassis)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Disconnect the stoplight switch and the brake booster pushrod from the brake pedal pin. Remove the retaining pin. Remove the stoplight switch. Remove the brake booster pushrod. See Fig 1.
  3. On vehicles with Hydro-Max, remove the brake pedal pivot nut and bolt. Remove the brake pedal bracket nut and bolt. Remove the brake pedal bracket. See Fig 2.
  4. On vehicles with Hydro-Boost, remove the brake pedal nut and bolt. Remove the brake pedal bracket nut and bolt. Remove the brake pedal and bracket. See Fig 3.
  5. To install, reverse the removal procedure.
Fig 1: Identifying Brake Pedal Components
G00299525Courtesy of FORD MOTOR CO.

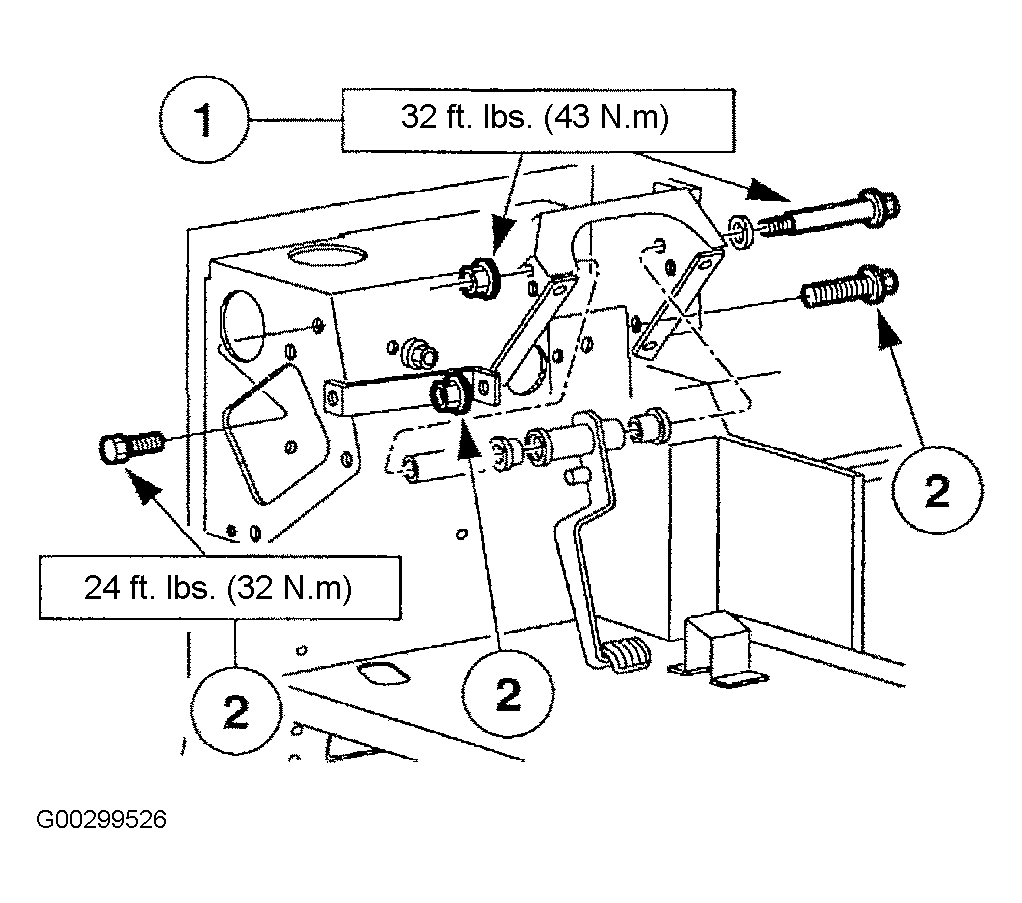

Fig 2: Removing Brake Pedal & Bracket (Hydro-Max) With Torque Specifications
G00299526Courtesy of FORD MOTOR CO.

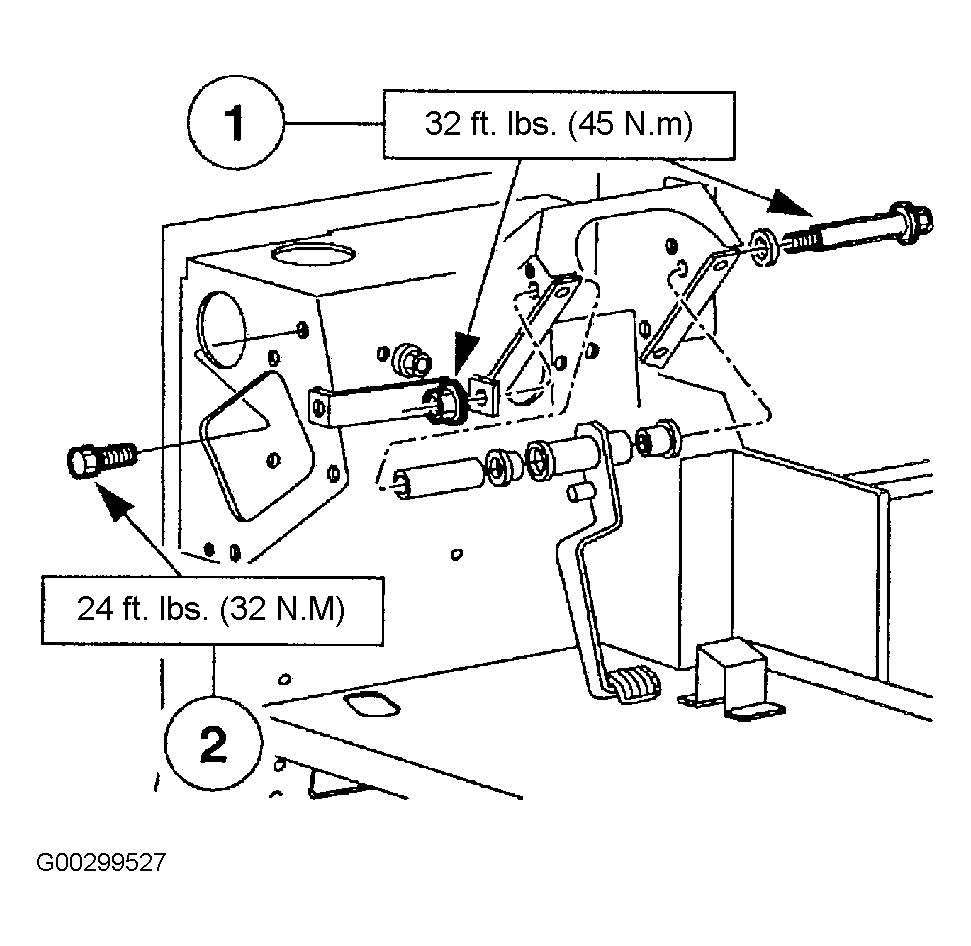

Fig 3: Removing Brake Pedal & Bracket (Hydro-Boost) With Torque Specifications
G00299527Courtesy of FORD MOTOR CO.
