Removal & Installation (Except Motorhome Chassis)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Release the fuse block assembly from the brake pedal bracket and position aside. See Fig 1.
  3. Disconnect the brake booster push rod. Remove the stoplight switch self-locking clip. Remove the stoplight switch. Remove the brake booster push rod bushing. Disconnect the brake booster push rod from the brake pedal pin. See Fig 2.
  4. Remove the brake pedal bracket upper mounting nuts. See Fig 2.
  5. Remove the brake booster mounting nuts.
  6. Remove the brake pedal and bracket assembly.
  7. To install, reverse the removal procedure.

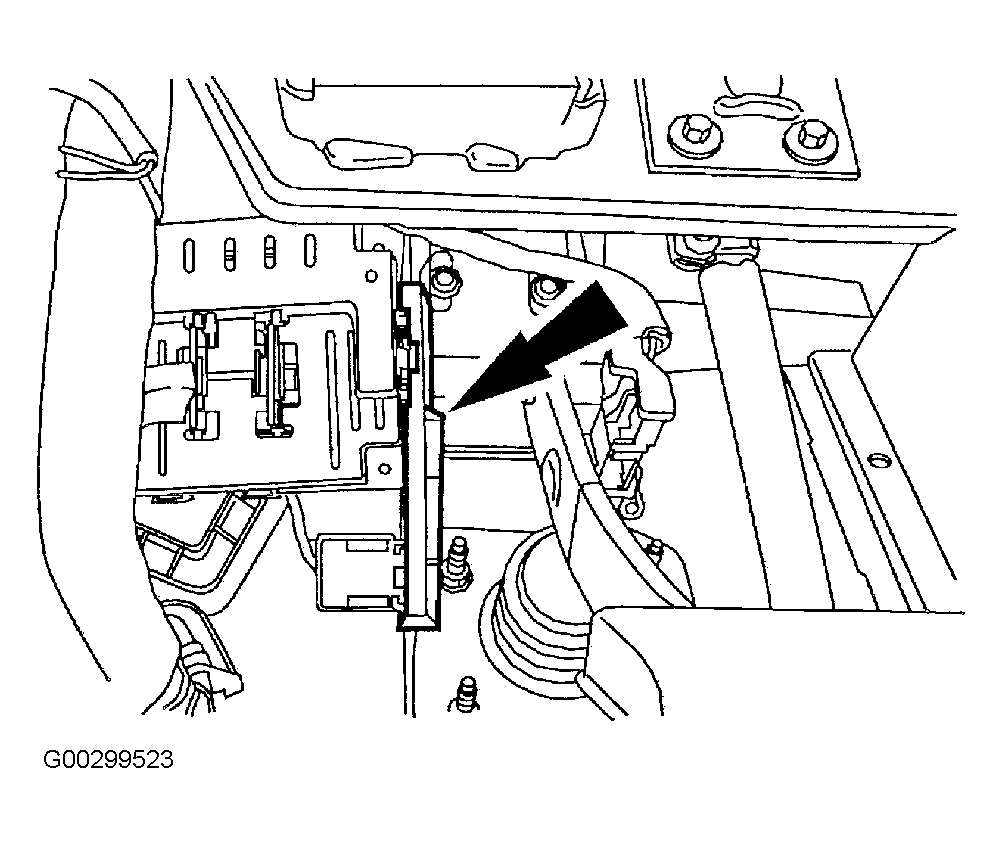

Fig 1: Identifying Fuse Block Assembly-To-Brake Pedal Bracket
G00299523Courtesy of FORD MOTOR CO.
Fig 2: Identifying Brake Pedal Components
G00299524Courtesy of FORD MOTOR CO.
