Rear Disc Brakes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

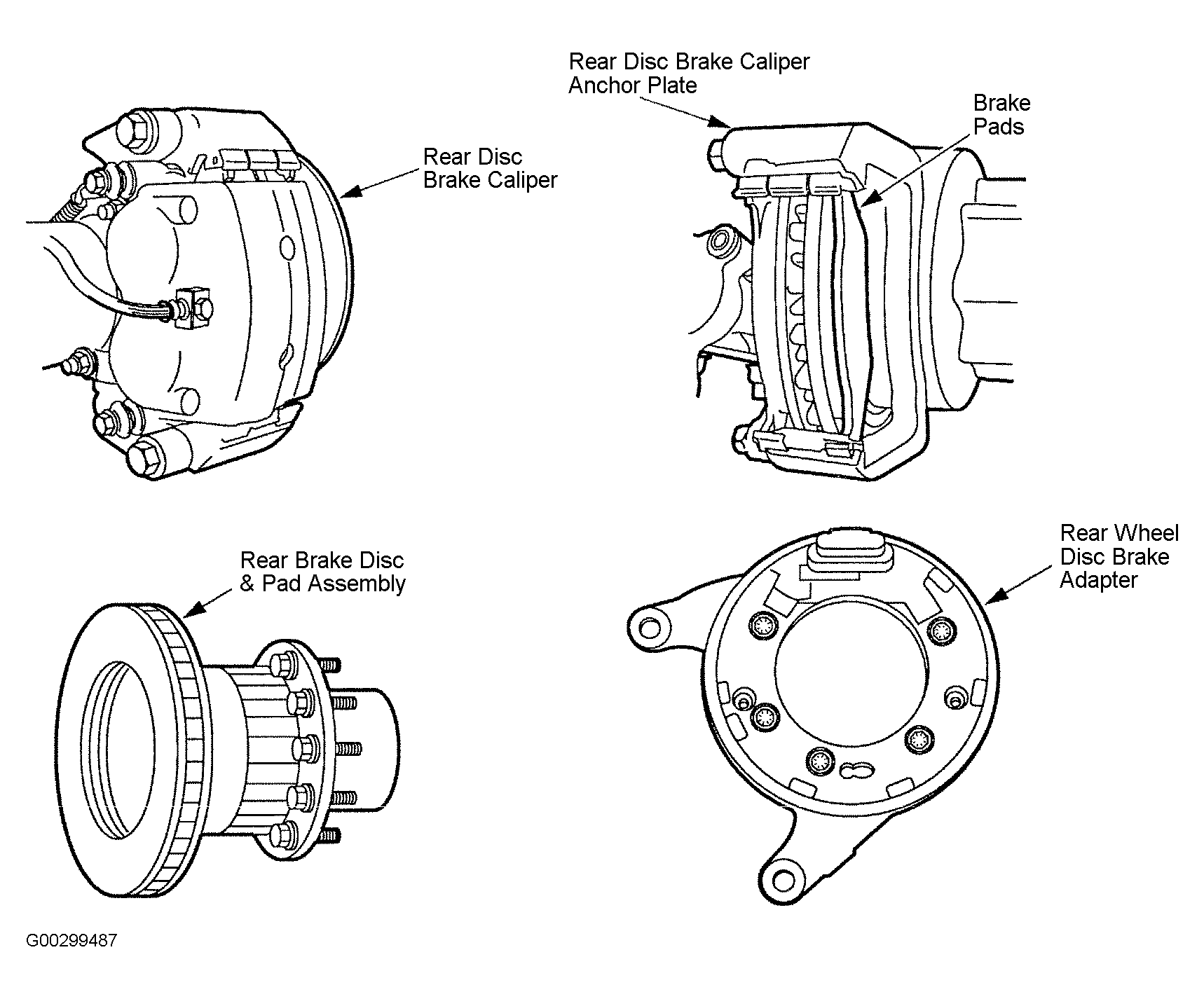

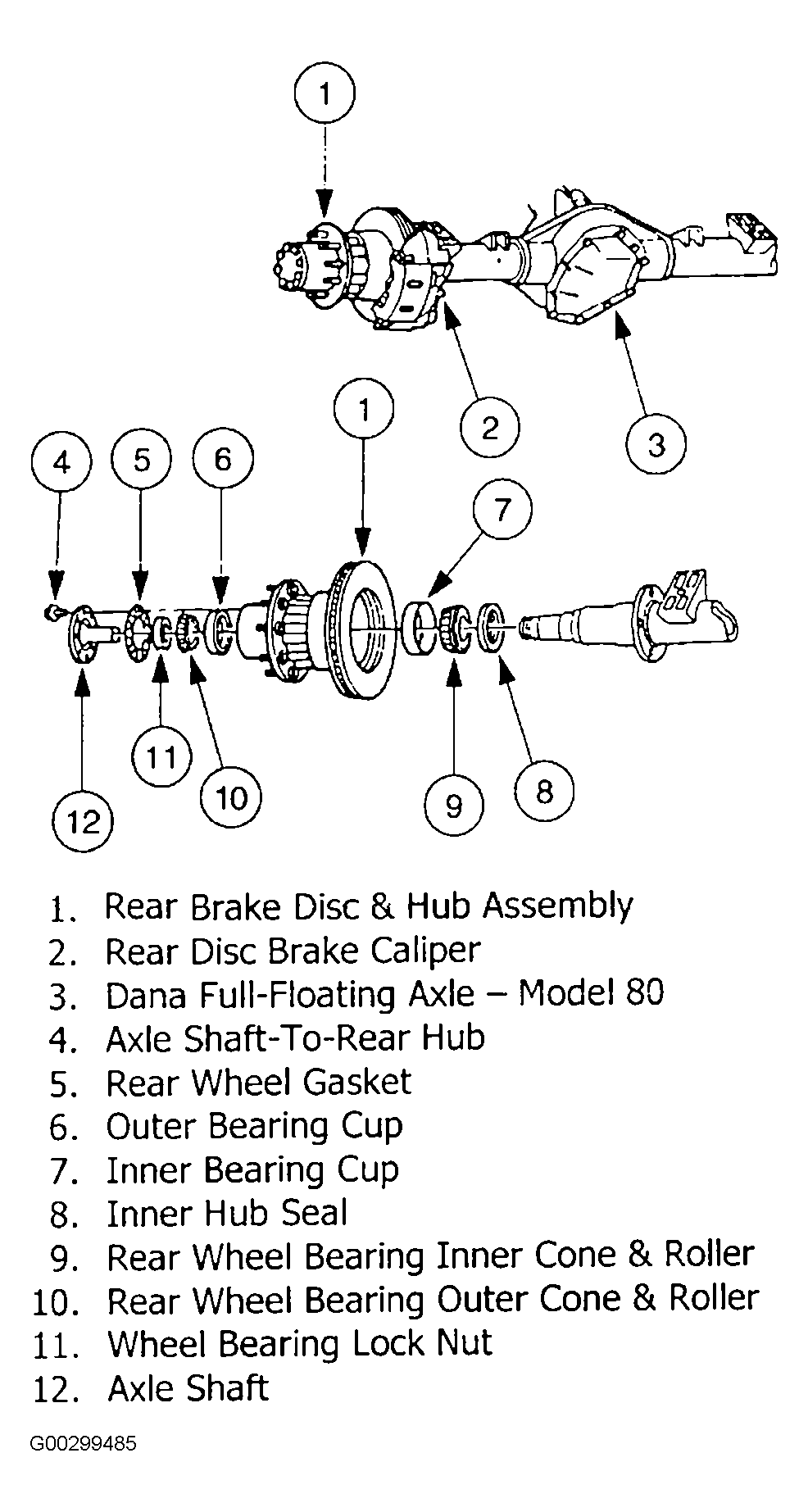

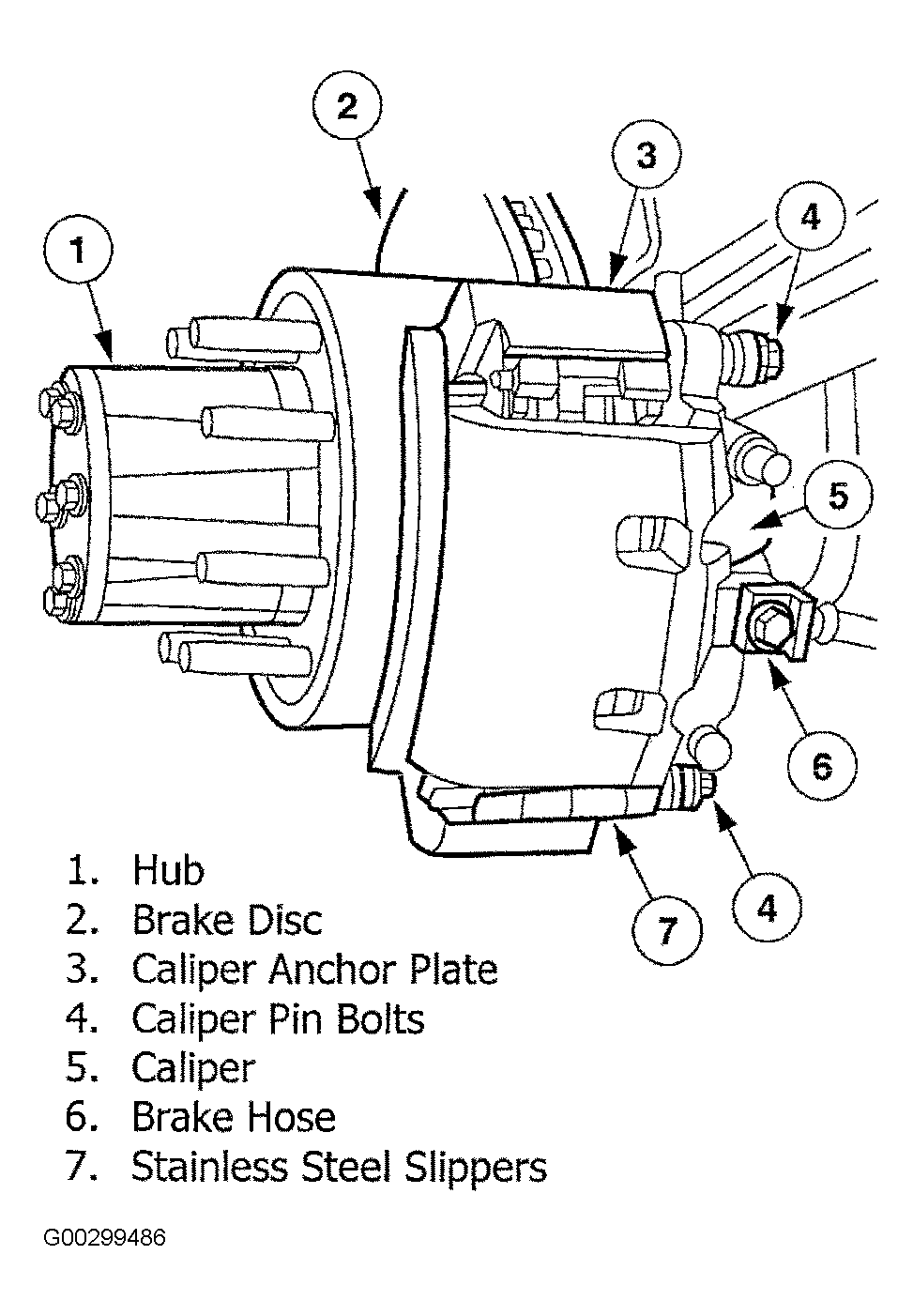

Rear disc brakes, if equipped, use dual piston rear caliper. See Fig 1-Fig 3 . The rear brake disc has the following characteristics:
- A two-piston rear disc brake caliper.
- A vented-cast, drum-in-hat type rear brake disc.
- A rear disc brake caliper anchor holds the brake pads.
- A rear wheel brake disc adapter holds the rear disc brake caliper anchor and the rear wheel disc brake shield.
The rear brake disc and hub are made from a single casting and are not available separately. The brake disc and hub serve to mount the rear wheel bearings and the rear wheels. Brake disc and hub removal is part of the bearing, cups and seals repair procedure
