Fuel Lines: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

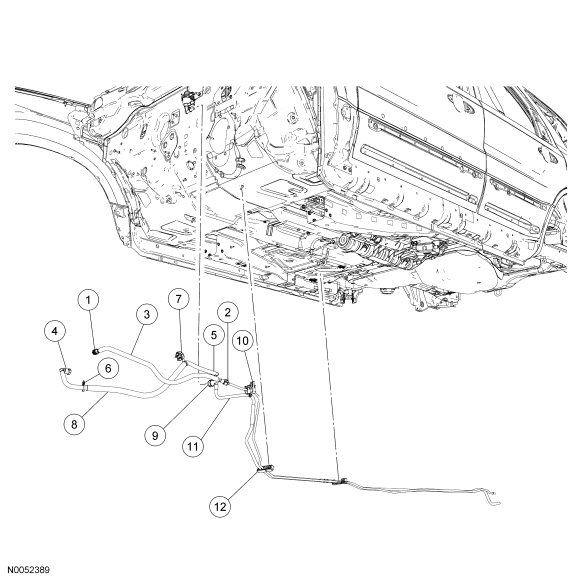

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Fuel supply tube quick connect coupling (part of 9288B) |
| 2 |
- |
Fuel supply tube quick connect coupling (part of 9288B) |
| 3 |
9288B |
Fuel supply tube |
| 4 |
- |
Fuel vapor tube quick connect coupling (part of 9D289B) |
| 5 |
- |
Fuel vapor tube quick connect coupling (part of 9D289B) |
| 6 |
- |
Fuel vapor tube pushpin retainer (part of 9D289B) |
| 7 |
- |
Fuel vapor tube pushpin retainer (part of 9D289B) |
| 8 |
9D289B |
Fuel vapor tube |
| 9 |
- |
Fuel vapor tube quick connect coupling (part of 9D289B) |
| 10 |
- |
Fuel tube retainer clip (part of 9J279) |
| 11 |
9D289B |
Fuel vapor tube |
| 12 |
- |
Fuel tube retainer clip (part of 9J279) (4 required) |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 13 |
- |
Fuel supply tube quick connect coupling (part of 9A274B) |
| 14 |
- |
Fuel supply tube quick connect coupling (part of 9A274B) |
| 15 |
9A274B |
Fuel supply tube |
| 16 |
9A274B |
Fuel supply tube |
| 17 |
- |
Fuel vapor tube quick connect coupling (part of 9D289B) |
