Positive Crankcase Ventilation (PCV) Valve: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

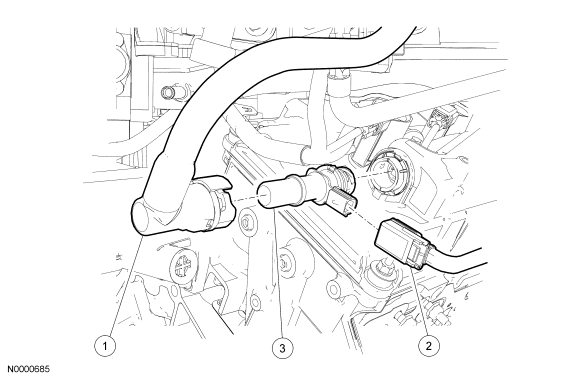

Fig 1: Exploded View Of Positive Crankcase Ventilation PCV Valve - Heated PCV Shown; Non-Heated Similar With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E499 | Positive crankcase ventilation (PCV) tube |
| 2 | 14A464 | PCV valve electrical connector (part of 12A580) (if equipped) |
| 3 | 6A666 | PCV valve |
