Motor Electronics Cooler
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

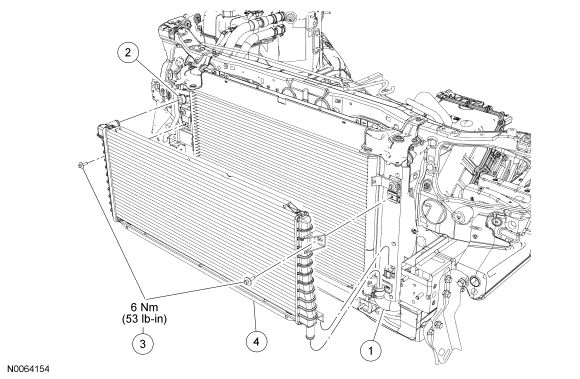

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B273 | Motor electronics (M/E) cooler inlet hose |
| 2 | 8B274-B | M/E cooler outlet hose |
| 3 | N606676-S | M/E cooler bolts |
| 4 | 8005-B | M/E cooler |
- Drain the motor electronics cooling system (MECS). For additional information, refer to Motor Electronics Cooling System Draining and Filling .
- Remove the front bumper cover. For additional information, refer to BUMPERS article.
- Loosen the hose clamp and disconnect the inlet hose.
- Loosen the hose clamp and disconnect the outlet hose.
- Remove the motor electronics (M/E) cooler bolts.
- To install, tighten to 6 Nm (53 lb-in).
- To install, reverse the removal procedure.
NOTE:
RH shown, LH similar.
