Removal & Installation (Front Cable & Conduit)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully release parking brake control.
  2. Relieve the tension on the parking brake system. Pull the front parking brake cable down. Insert a suitable retainer. See Figure.
  3. Disconnect the front parking brake cable and conduit from the right parking brake rear cable and conduit. Pull the front parking brake cable and conduit rearward to unclip it from the right parking brake rear cable and conduit. See Fig 1.
  4. Remove the front door scuff plate. See Figure.
  5. Remove the cowl side trim panel. See Figure.
  6. Disconnect the front parking brake cable and conduit. Compress the connector to release the front parking brake cable. Disconnect the front parking brake cable. Remove the front parking brake cable. See Figure.
  7. Remove the front parking brake cable and conduit. Pry the rubber seal from the front floor pan. Unclip the front parking brake cable and conduit from the front parking brake cable clip. Compress the retainer and release the front parking brake cable and conduit from the bracket. Remove the front parking brake cable and conduit. See Fig 2.
  8. To install, reverse the removal procedure.

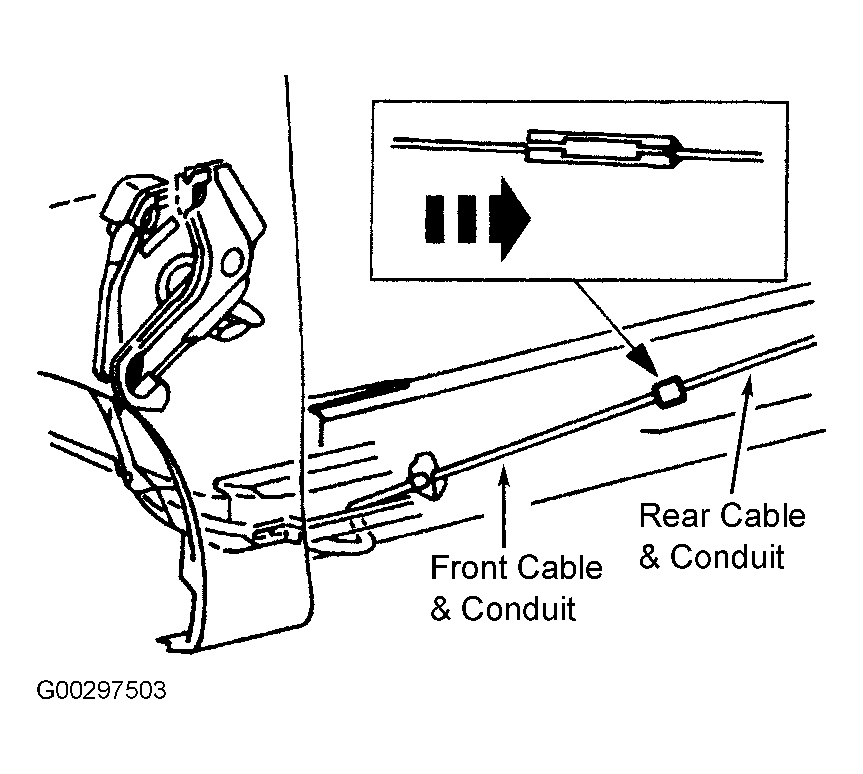

Fig 1: Identifying Front-To-Rear Cable & Conduit Connector
G00297503Courtesy of FORD MOTOR CO.

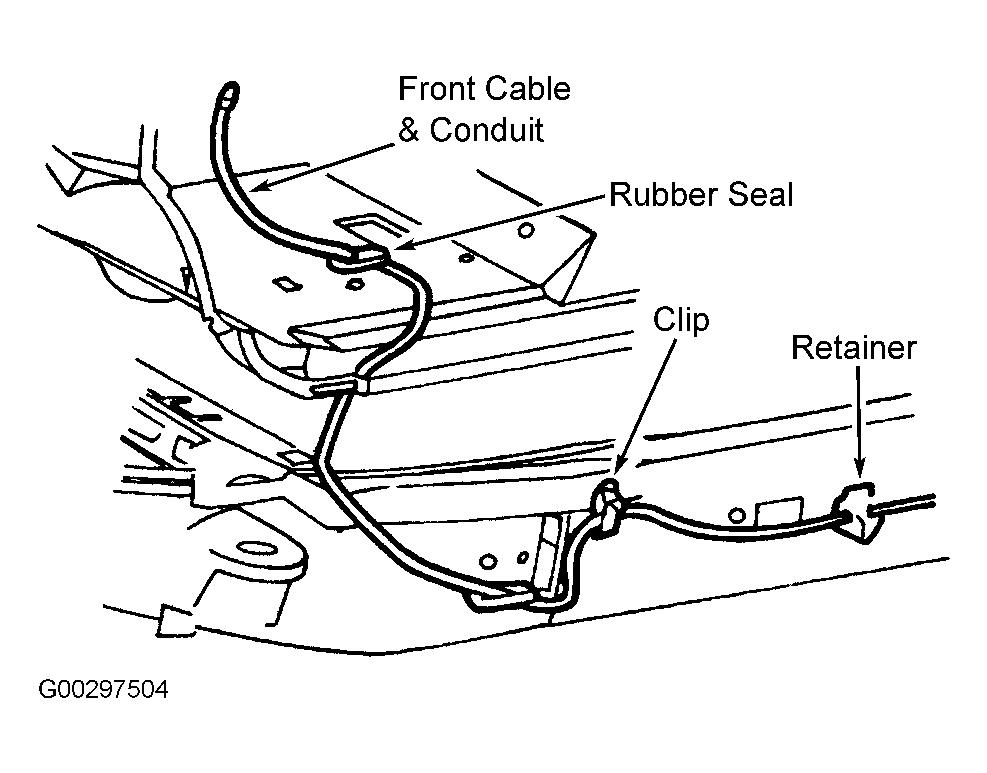

Fig 2: Removing Front Cable & Conduit
G00297504Courtesy of FORD MOTOR CO.
