Removal & Installation (Fixed Pedals With M/T)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the clutch master cylinder push rod. See Fig 1.
  2. Disconnect the Clutch Pedal Position (CPP) switch. See Fig 2.
  3. Remove the clutch master cylinder by rotating the clutch master cylinder 45 degrees clockwise. See Fig 3.
  4. Remove the stoplight switch self-locking pin. See Figure.
  5. Slide the stoplight switch and the booster push rod off the brake pedal pin. See Figure.
  6. Remove the bulkhead sound insulator. See Figure.
  7. Remove the two brake pedal bracket bolts. See Fig 4.

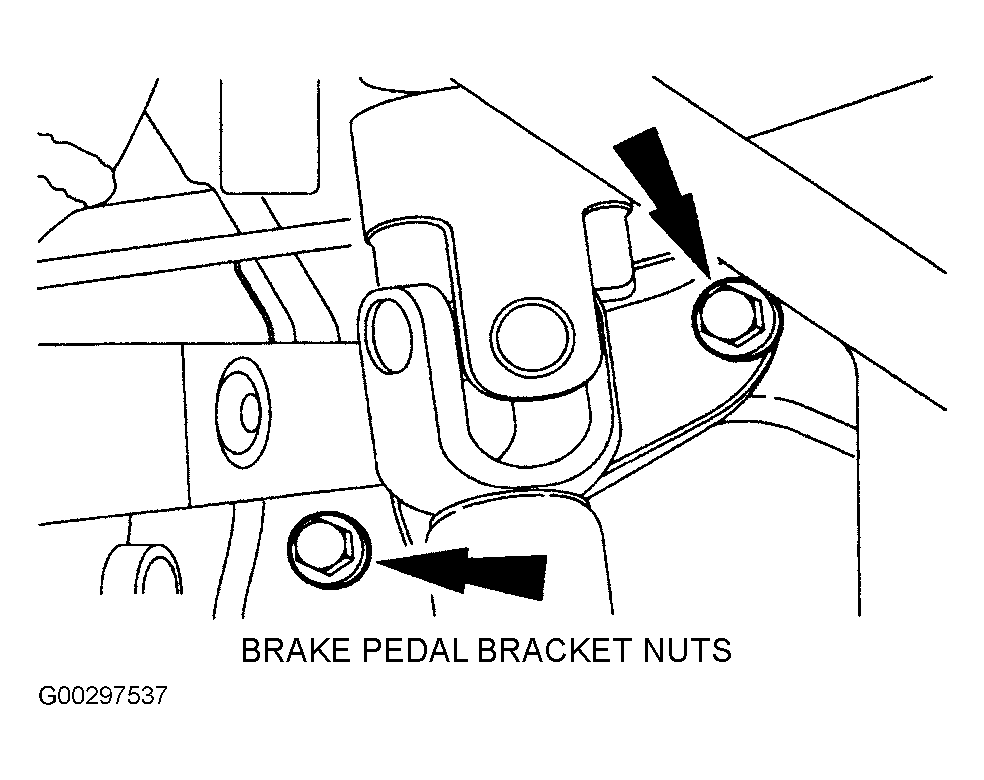

  8. Remove the brake pedal bracket/power booster nuts. See Figure.
  9. To install, reverse removal procedure. Ensure the bulkhead sound insulator is not between the brake pedal and bracket and the bulkhead. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
Fig 1: Disconnecting Clutch Master Cylinder Pushrod
G00297538Courtesy of FORD MOTOR CO.

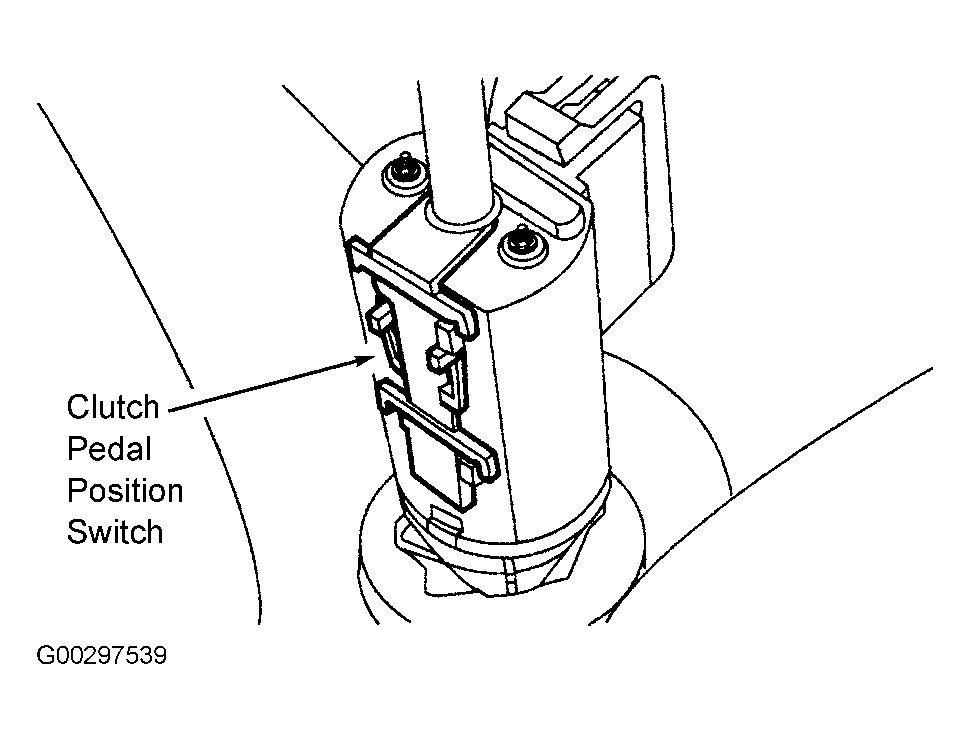

Fig 2: Identifying Clutch Pedal Position Switch
G00297539Courtesy of FORD MOTOR CO.

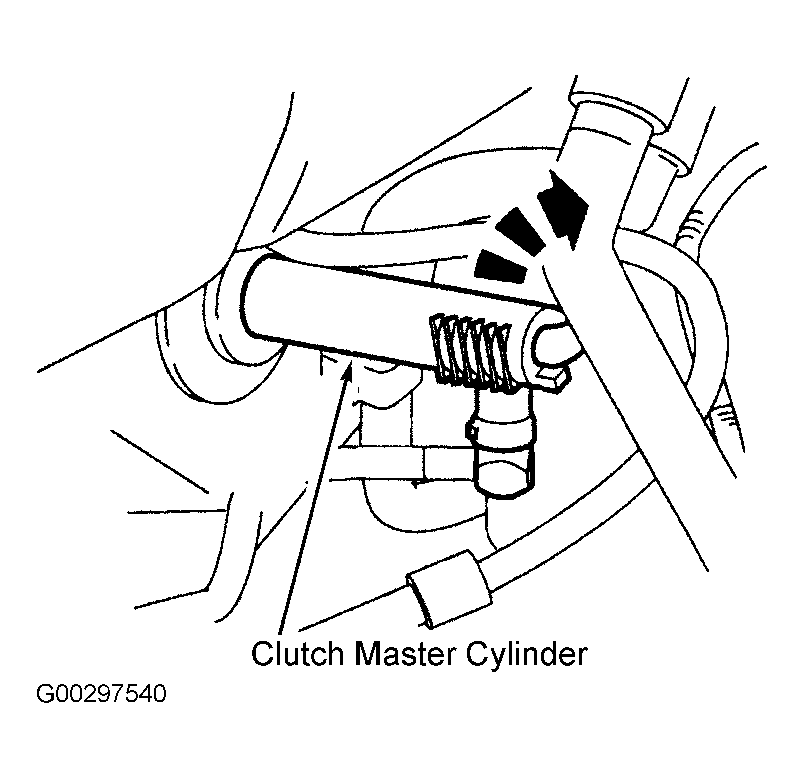

Fig 3: Removing Clutch Master Cylinder
G00297540Courtesy of FORD MOTOR CO.

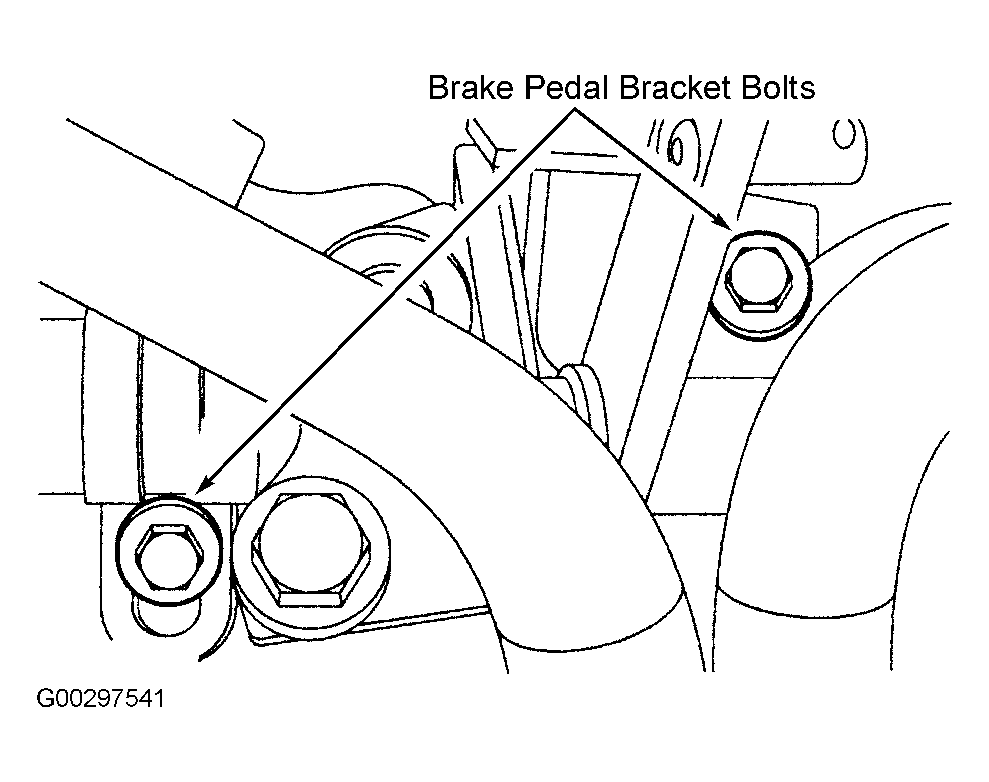

Fig 4: Identifying Brake Pedal Bracket Bolts (M/T)
G00297541Courtesy of FORD MOTOR CO.
