Rear Drum Brakes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

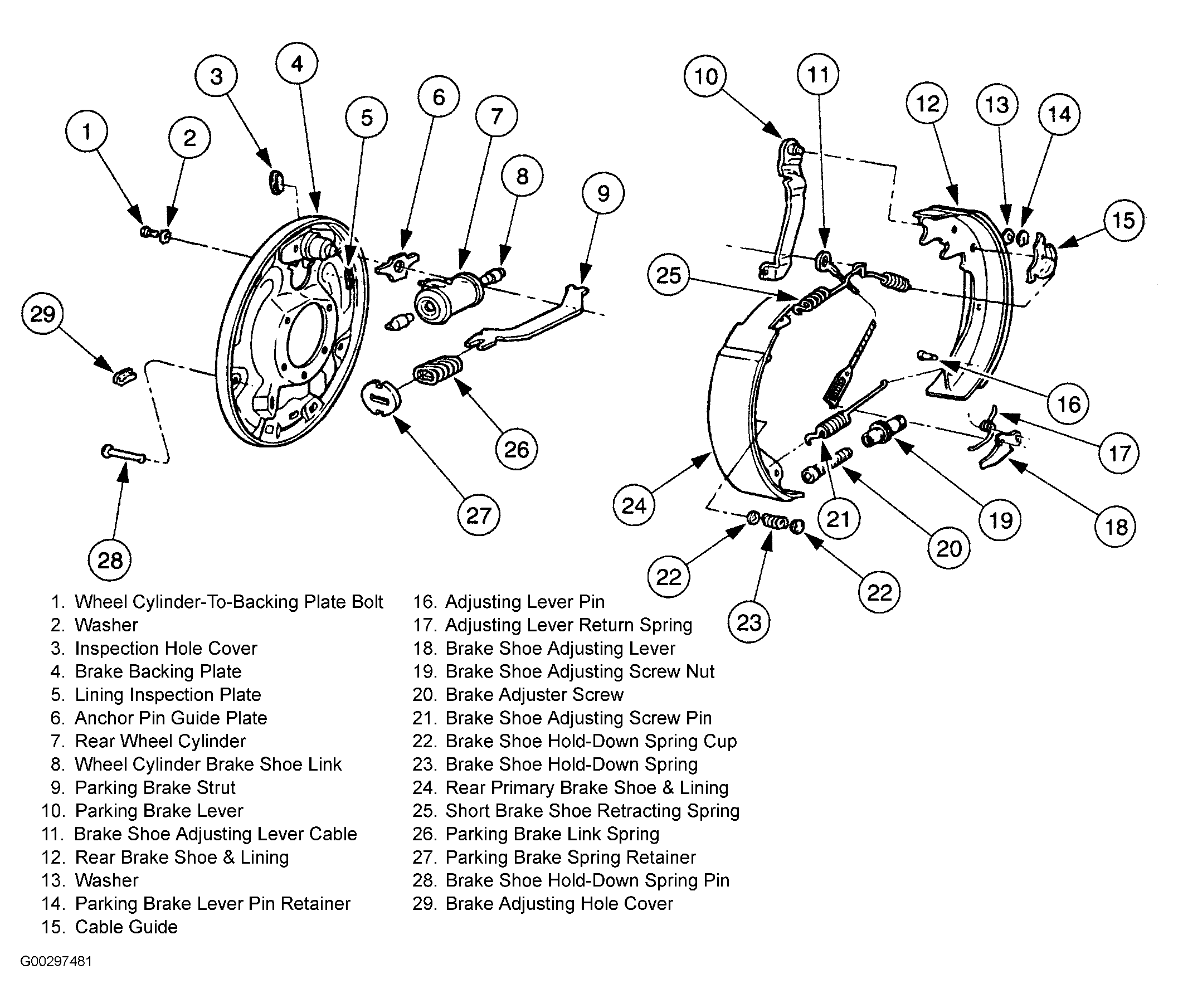

Rear drum brakes are used on F150 Pickup and F150 Heritage Pickup. The drum brake system is the single anchor type and has active self-adjustment. The drum brake system is split front and rear hydraulically. On rear drum brake models, the parking brake is actuated by a cable, which pulls the parking brake lever located inside rear brake assembly. The lever pivots parking brake strut between brake shoes. This movement pushes outward on brake shoes. Brake shoe linings are made of asbestos-free, fiberglass material. Rear drum brake assembly consists of a support plate, 2 brake shoes, return springs, automatic adjuster components and one dual-piston wheel cylinder. See Fig 1.
