Rear Disc Brakes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

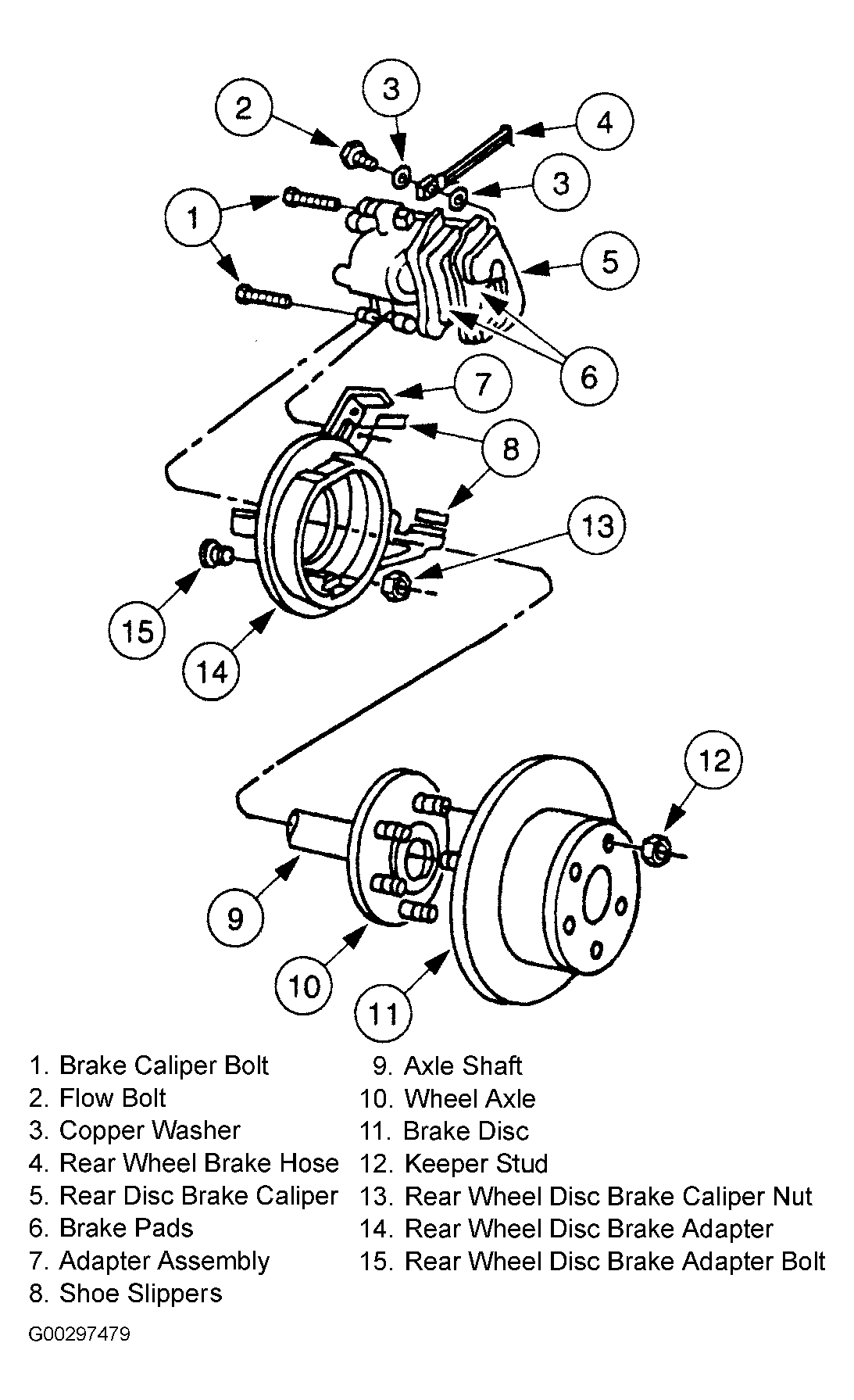

Rear disc brakes are standard on Blackwood and is optional on F150 Pickup and F150 Heritage Pickup. All models are equipped with solid, full-cast, drum-in-hat type. The rear disc brake caliper is equipped with a riveted spring clip that secures it to either the rear disc brake caliper piston or the rear disc brake caliper housing. The inboard and outboard brake pads are not interchangeable. See Fig 1 or Fig 2 .
