Parking Brake

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

The parking brake system is actuated when the parking brake control is depressed. The parking brake control applies tension to the front parking brake cable and conduit and parking brake cable equalizer. The parking brake cable equalizer is coupled to the right parking brake rear cable and the left parking brake rear cable. The respective rear brake assemblies are then applied. See Fig 1 Fig 2.

The rear wheel brake disc assembly contains a cable actuated parking brake assembly. See Fig 3. If the parking brake control is not fully released, the parking brake signal switch will illuminate the brake warning light. The parking brake signal switch is mounted on the parking brake control. The switch is held in place by a self-tapping screw and aligned with a locator pin. The brake disc parking brake system is not self-adjusting. Therefore cable tension may need to be adjusted. On 2004 F150 Pickup, parking brake cable tension is self-adjusting.

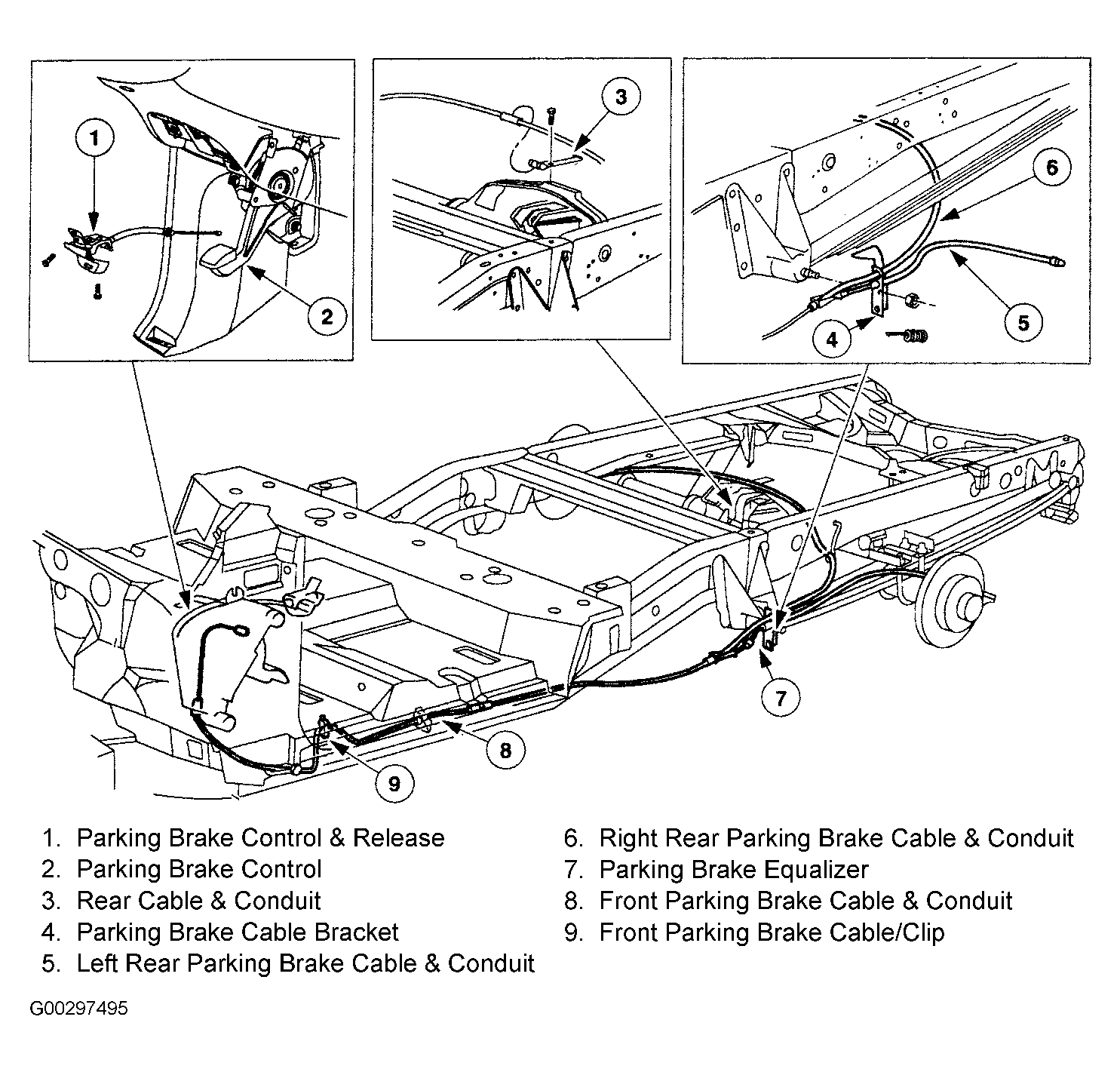

Fig 1: Identifying Parking Brake Components (Blackwood)

Courtesy of FORD MOTOR CO.

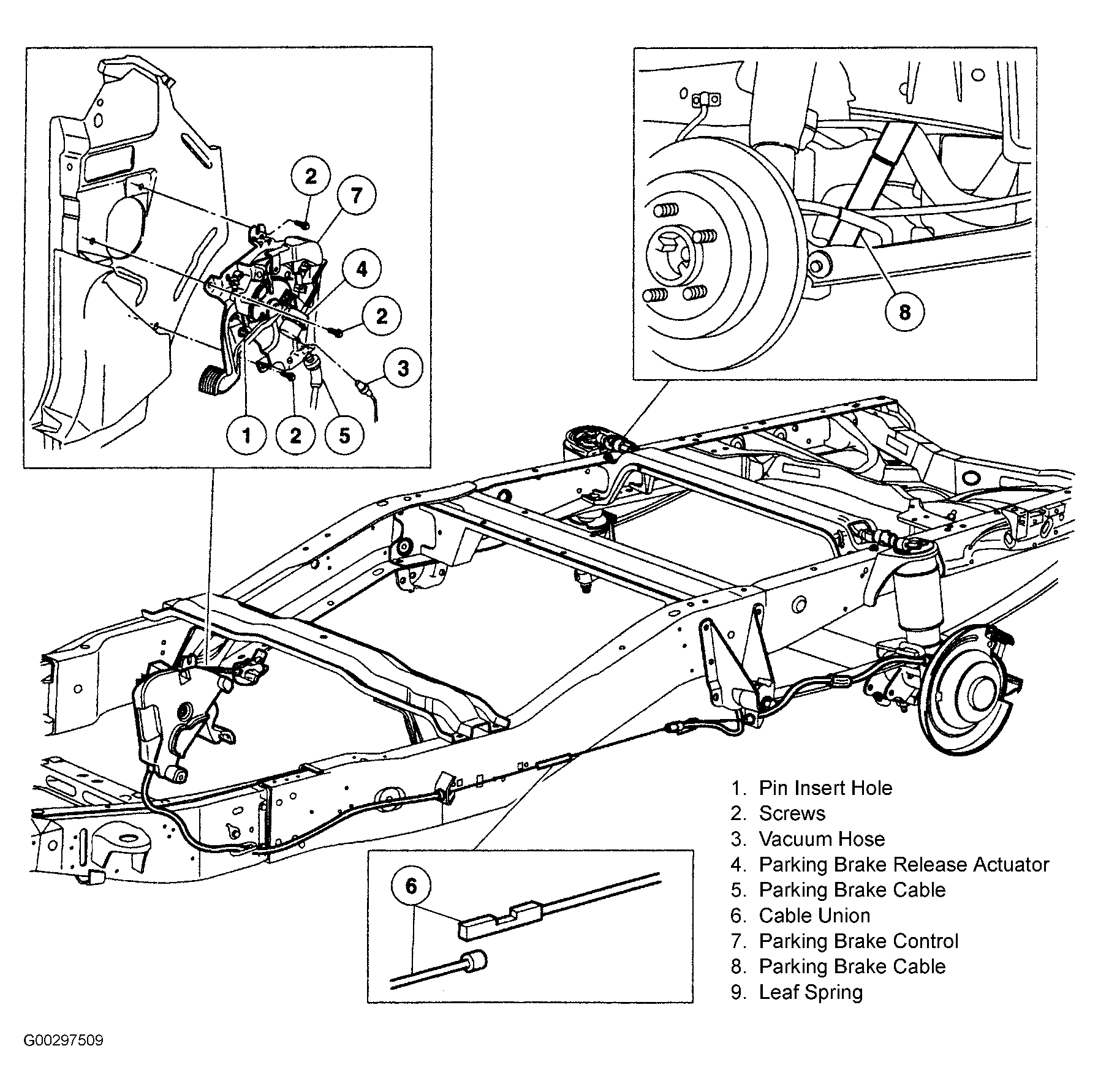

Fig 2: Identifying Parking Brake Components (F150 Pickup & F150 Heritage Pickup With Rear Disc Brakes)

Courtesy of FORD MOTOR CO.

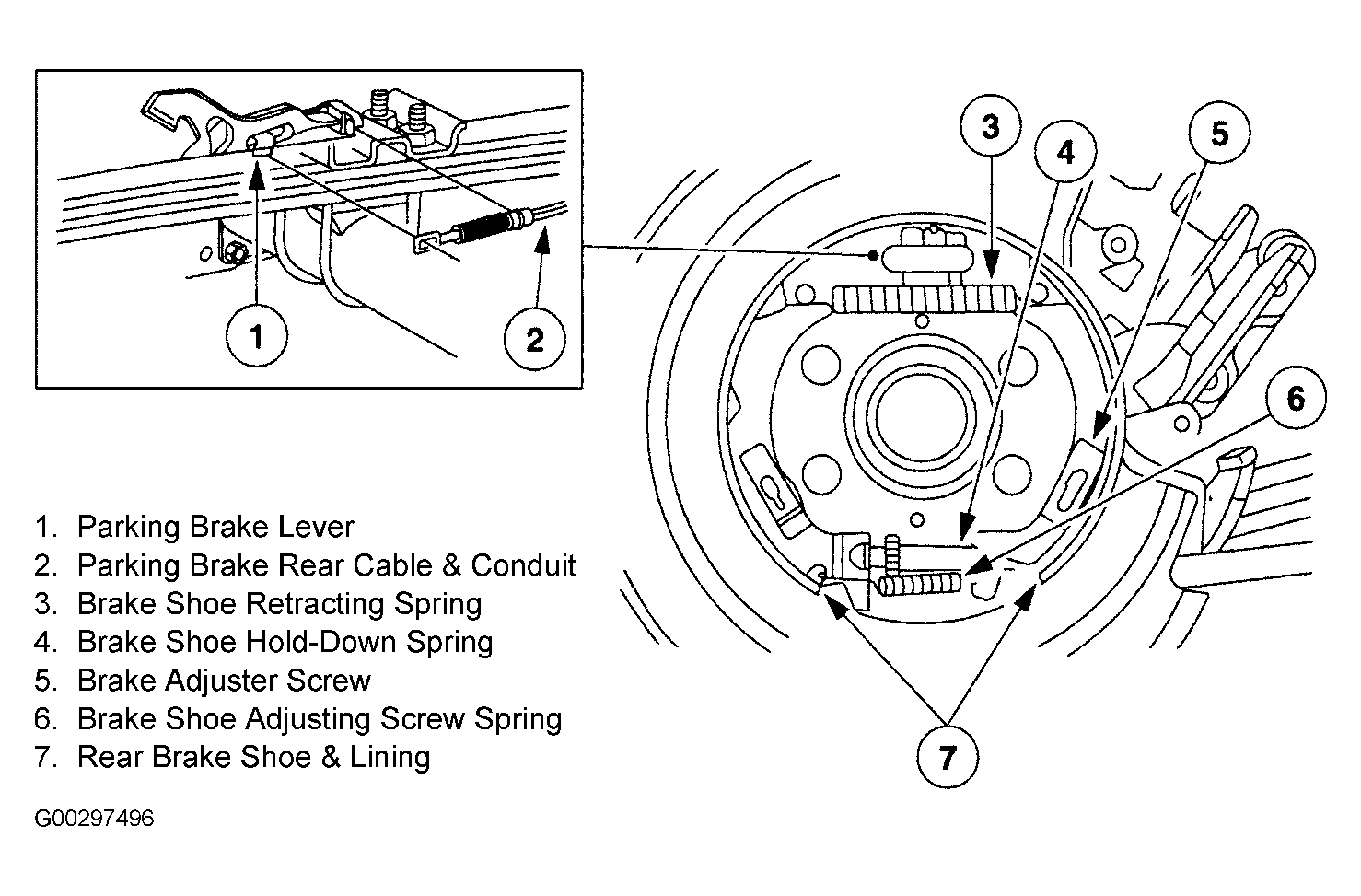

Fig 3: Identifying Rear Disc Brake Parking Brake Components

Courtesy of FORD MOTOR CO.
