Removal And Installation

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The transmission range (TR) sensor is part of the transmission selector lever assembly.

Remove the transmission selector lever trim ring.
- Carefully pry up the 4 trim ring clips, then remove the trim ring.

Fig 1: Transmission Selector Lever Trim Ring

Courtesy of FORD MOTOR CO.

Remove the floor console finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.

CAUTION: Before installation, make sure the transmission selector lever is in the DRIVE position with the ignition in the OFF position.

Disconnect the shift cable end from the transmission selector lever ball stud.

Fig 2: Shift Cable End & Transmission Selector Lever Ball Stud

Courtesy of FORD MOTOR CO.

Release the cable retainer from the transmission selector lever assembly.

Fig 3: Cable Retainer

Courtesy of FORD MOTOR CO.

Disconnect the 2 electrical connectors.
Remove the 4 bolts.
- To install, tighten to 23 Nm (17 lb-ft).

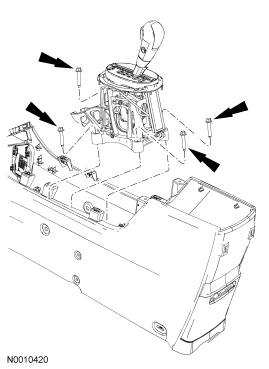

Fig 4: Transmission Selector Lever Assembly & Bolts

Courtesy of FORD MOTOR CO.

Remove the transmission selector lever assembly.
To install, reverse the removal procedure. Adjust the selector lever cable. Refer to Selector Lever Cable Adjustment .
