Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

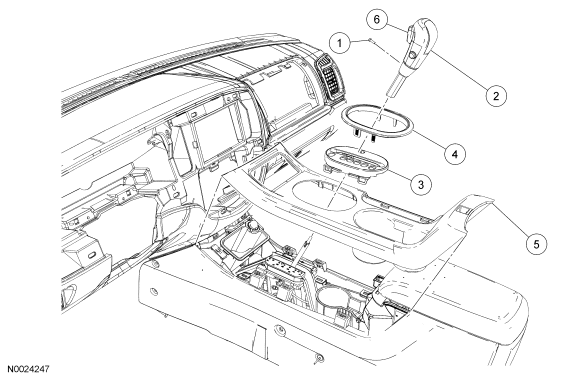

Fig 1: Exploded View Of Selector Lever Bezel
GF0025281Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W302114 Selector lever knob set screw
2 7L010 Selector lever knob
3 7E034 Bezel
4 7806A16 Trim ring
5 78045G70 Top finish panel
6 7C489 Selector lever knob button
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
  2. Place the floor shift selector lever in the Overdrive (Circle D) position.
    3. Fig 2: Locating Floor Shift Selector Lever In (D) Position
    G03901632Courtesy of FORD MOTOR CO.
  3. Gently pry up to remove the upper shift lever trim ring.
    4. Fig 3: Identifying Upper Shift Lever Trim Ring
    G03901603Courtesy of FORD MOTOR CO.
  4. Remove the top finish panel.
    5. Fig 4: Locating Top Finish Panel
    G03901614Courtesy of FORD MOTOR CO.
  5. Remove the set screw.
    6. Fig 5: Locating Shift Knob Set Screw
    G03901624Courtesy of FORD MOTOR CO.
    CAUTION: Make sure that the plastic straw inside of the lever does not come out.
  6. Remove the knob and wiring by pulling straight up on the knob.
    7. Fig 6: Shift Knob & Wiring
    GF0025279Courtesy of FORD MOTOR CO.
  7. Carefully pry up the 4 bezel clips and remove the bezel.
    8. Fig 7: Bezel Clip
    GF0025282Courtesy of FORD MOTOR CO.
  8. Remove the gearshift bezel.
    9. Fig 8: Gearshift Bezel
    GF0025283Courtesy of FORD MOTOR CO.
