Side Impact Sensor - Second Row, C-Pillar: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

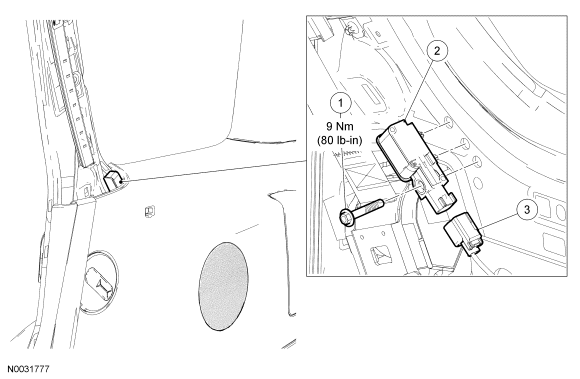

Fig 1: Exploded View Of C-Pillar Second Row Side Impact Sensor With Torque Specifications
GF0024047Courtesy of FORD MOTOR CO.
Item Part Number Description
1 710361 Side impact sensor bolt
2 14B345 Side impact sensor
3 - Side impact sensor connector (part of 14405)
