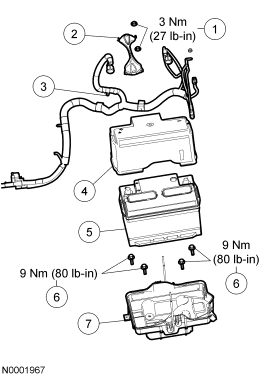

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701694-S441 | Battery hold down nuts (2 required) |
| 2 | 10718 | Battery hold down clamp |
| 3 | 13A506 | Pin-type retainer |
| 4 | 10A659 | Battery cover (if equipped) |
| 5 | 10655 | Battery |
| 6 | W503923-S439 | Battery tray bolts (4 required) |
| 7 | 10732 | Battery tray |
- For additional information, refer to the following procedures.
