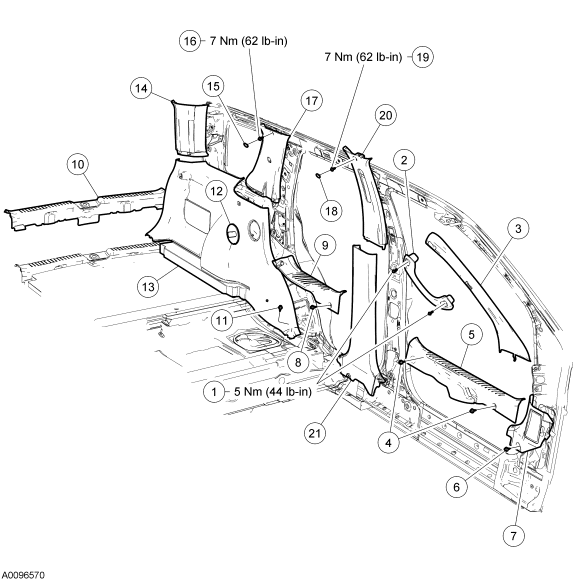

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W505144-S424 | A-pillar passenger assist handle bolts (2 required) |
| 2 | 7831406/ 7831407 | Passenger assist handle |
| 3 | 7803512 / 7803513 | A-pillar trim panel |
| 4 | W711445-SSW | Pin-type retainers (2 required) |
| 5 | 7813200 / 7813201 | Front door scuff plate trim panel |
| 6 | W711445-SSW | Pin-type retainer |
| 7 | 7802348 / 7802349 | Lower A-pillar trim panel |
| 8 | W711445-SSW | Pin-type retainer |
| 9 | 7813244 / 7813245 | Rear door scuff plate trim panel |
| 10 | 7803598 | Liftgate scuff plate trim panel |
| 11 | W710584 | Pin-type retainer |
| 12 | 7831056 / 7831057 | Seat latch striker trim panel |
| 13 | 7831012 / 7831013 | Quarter trim panel |
| 14 | 7851748/ 7851749 | D-pillar trim panel |
| 15 | 78243A84 | C-pillar bolt cover |
| 16 | W709735-S438 | Upper C-pillar trim panel bolt |
| 17 | 7831332 / 7831333 | C-pillar trim panel |
| 18 | 78243A84 | Upper B-pillar bolt cover |
| 19 | W709735-S438 | Upper B-pillar trim panel bolt |
| 20 | 7824396 / 7824397 | Upper B-pillar trim panel |
| 21 | 78243A52 / 78243A53 | Lower B-pillar trim panel |
- For additional information, refer to the following procedures.
