Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

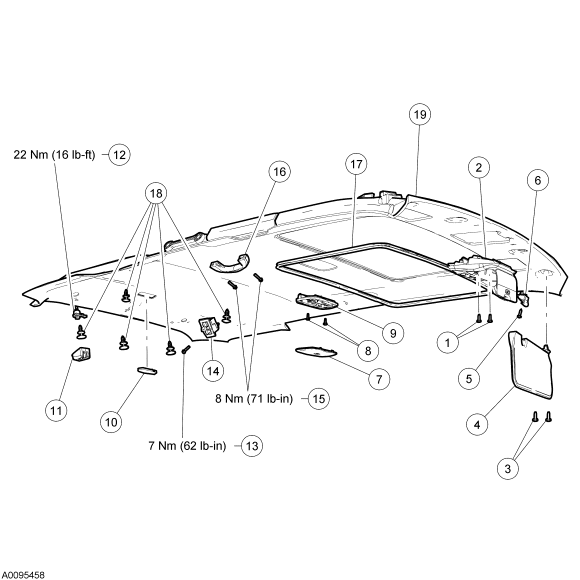

| Item | Part Number | Description |
|---|---|---|
| 1 | W505043-S424 | Overhead console screws (2 required, if equipped) |
| 2 | 78519A58 | Overhead console (if equipped) |
| 3 | W504242-S424 | Sun visor screws (2 screws) |
| 4 | 7804100/ 7804101 | Sun visor |
| 5 | W504263-S424 | Sun visor clip screw |
| 6 | 7804132 | Sun visor clip |
| 7 | - | Interior lamp lens (part of 13776) |
| 8 | - | Interior lamp screws (2 required) (part of 13776) |
| 9 | 13776 | Interior lamp |
| 10 | 13776 | Cargo lamp |
| 11 | - | Child seat tether anchor cover (3 required) |
| 12 | - | Child seat tether anchor bolt (3 required) |
| 13 | W709735-S438 | Coat hook screw (if equipped) |
| 14 | 78290C14 | Coat hook (if equipped) |
| 15 | W709825-S438 | Passenger assist handle bolts (4 required, if equipped) |
| 16 | 7831406/ 7831407 | Passenger assist handle RH/LH (if equipped) |
| 17 | 7851884 | Headliner retainer (if equipped) |
| 18 | W709343 | Pin-type retainers (5 required) |
| 19 | 7851968 | Headliner |
