Safety Belt Retractor - Rear, Center: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

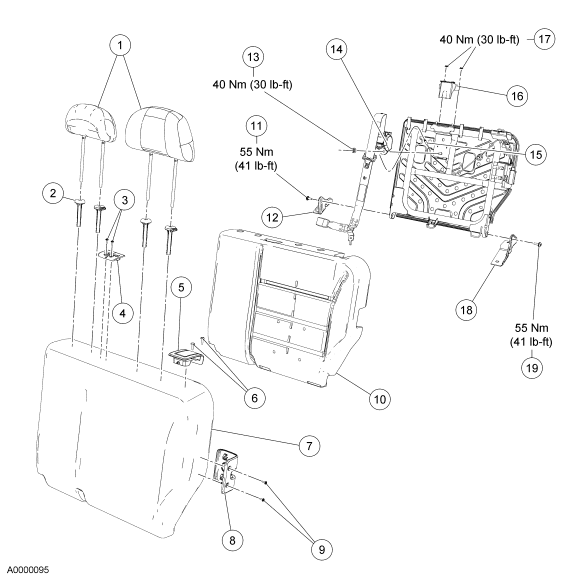

| Item | Part Number | Description |
|---|---|---|
| 1 | 66502A | Head restraints |
| 2 | 613D58A | Head restraint guide post (4 required) |
| 3 | 91347 | Safety belt shield screws |
| 4 | 611B78A | Safety belt shield |
| 5 | 624A09A | Seat latch release lever |
| 6 | - | Seat latch release lever screws |
| 7 | 66601A | Backrest trim cover |
| 8 | 666L76A | Latch cover |
| 9 | 91347 | Latch cover screws |
| 10 | 64002A | Foam pad |
| 11 | 91060 | RH riser bracket bolt |
| 12 | 60514B | RH riser bracket |
| 13 | 91058 | Retractor nut |
| 14 | 613E59A | Retractor |
| 15 | - | Seat latch cable (Part of 61383A) |
| 16 | 613E12A | Safety belt guide |
| 17 | 91054 | Safety belt guide nuts |
| 18 | 60515B | LH riser bracket |
| 19 | 91060 | LH riser bracket bolt |
