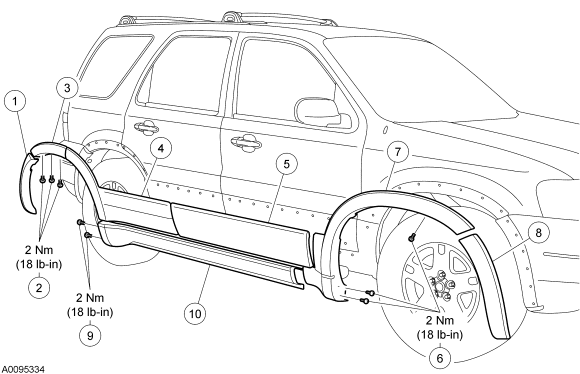

Exterior Trim - Exploded View, Escape
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear bumper cover moulding |
| 2 | 7829164 | Rear quarter moulding screws (3 required) |
| 3 | - | Rear quarter moulding |
| 4 | 7824730 | Rear door moulding |
| 5 | 7823890 | Front door moulding |
| 6 | 16C138 | Front fender moulding screws (6 required) |
| 7 | - | Right front fender moulding |
| 8 | 16038 | Front bumper cover moulding |
| 9 | - | Rocker panel moulding screws (2 required) |
| 10 | 78101A00 | Rocker panel moulding |
- For additional information, refer to the following procedures.
