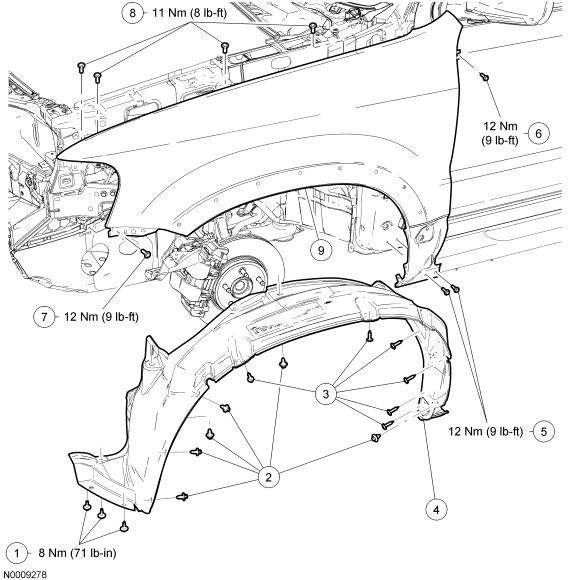

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707257 | Fender splash shield bolts (3 required) |
| 2 | W706713-S | Pin-type retainers (7 required) |
| 3 | W706805 | Fender splash shield screws (6 required) |
| 4 | 16A563/16A562 | Fender splash shield |
| 5 | W702434-S301 | Lower fender bolts (2 required) |
| 6 | W702434-S301 | Rear fender bolt |
| 7 | W702434-S301 | Radiator support brace fender bolt |
| 8 | W702434-S301 | Upper fender bolts (4 required) |
| 9 | 16005 | Fender |
- For additional information, refer to the following procedures.
