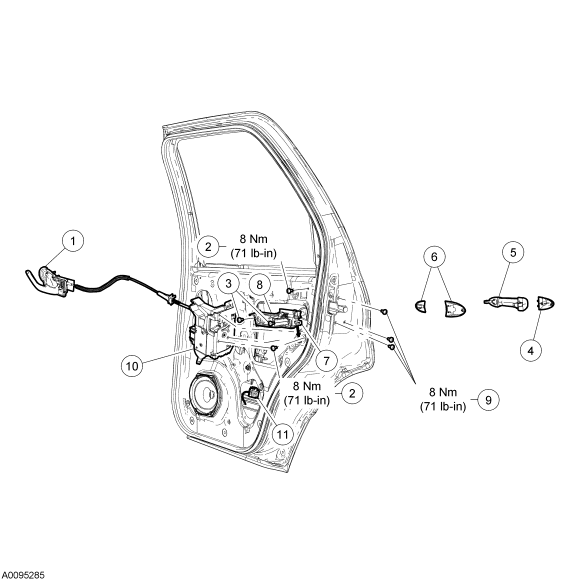

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 22600 | Interior door handle |
| 2 | - | Rear door glass top run bolts (2 required) |
| 3 | - | Exterior door handle reinforcement screws (2 required) |
| 4 | 218B08 | Exterior rear door handle cover |
| 5 | 22404 | Exterior rear door handle |
| 6 | 22042A/ 22042B | Exterior rear door handle seals (2 required) (RH/LH) |
| 7 | - | Exterior door handle actuating rod (part of 26604) |
| 8 | 26604 | Exterior door handle reinforcement |
| 9 | W705830-S901 | Rear door latch bolts (3 required) |
| 10 | 264A00 | Rear door latch |
| 11 | - | Rear door latch electrical connector |
- For additional information, refer to the following procedures.
