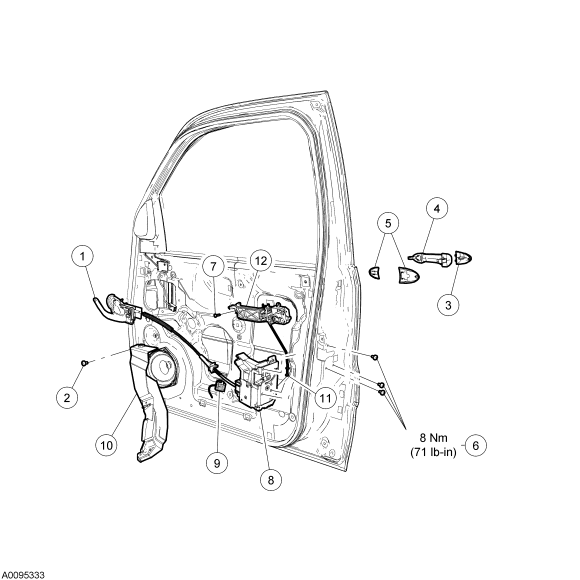

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 22600 | Interior door handle |
| 2 | - | Anti-theft guard screw (part of 21812/21813) |
| 3 | 218B08/ 218A14 | Exterior front door handle cover (RH/LH) |
| 4 | 22404 | Exterior front door handle |
| 5 | 22042A/ 22042B | Exterior front door handle seals (2 required) (RH/LH) |
| 6 | W705830-S901 | Front door latch bolts (3 required) |
| 7 | - | Exterior door handle reinforcement screw (part of 21812/21813) |
| 8 | 21812/21813 | Front door latch (RH/LH) |
| 9 | - | Front door latch electrical connector |
| 10 | - | Anti-theft guard (part of 21812/21813) |
| 11 | - | Exterior door handle actuating rod (part of 21812/21813) |
| 12 | - | Exterior door handle reinforcement (part of 21812/21813) |
- For additional information, refer to the following procedures.
