Steering Gear - Hybrid: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Tie-Rod End Remover	211-105 (T85M-3395-A)

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

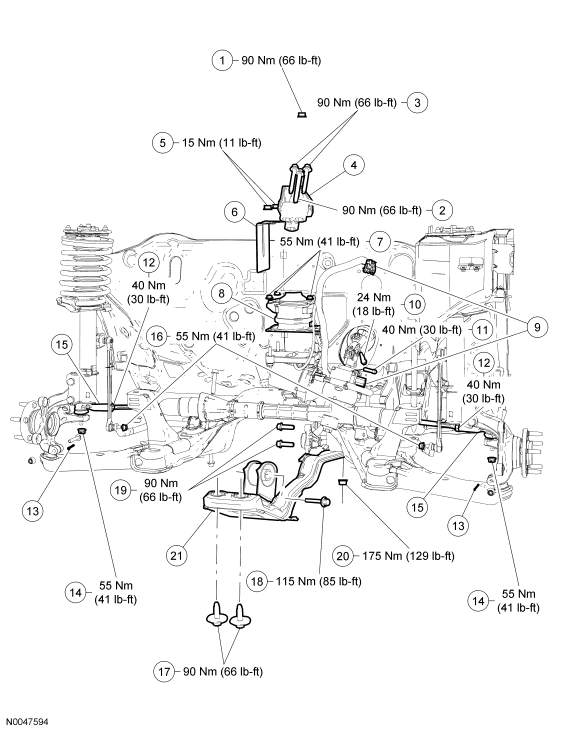

Fig 1: Exploded View Of Steering Gear - Hybrid (1 Of 2 - With Torque Specifications)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520415	Rear engine mount stud nut
2	W710187	Rear engine mount bracket aft bolt
3	W710186	Rear engine mount bracket forward bolts (2 required)
4	7G034	Rear engine mount bracket
5	W707654	Rear engine mount heat shield nuts (2 required)
6	3F617	Rear engine mount heat shield
7	W520414	Rear engine mount nuts (4 required)
8	6E037	Rear engine mount
9	-	Electrical connectors (part of 3F570)
10	3R827	Coupling-to-steering column pinch bolt
11	W705857	Coupling-to-steering gear pinch bolt
12	-	Tie-rod end jam nuts (2 required)
13	-	Cotter pin
14	W705833	Tie-rod end nuts (2 required)
15	3289	Outer tie-rod end
16	W708990	Lower stabilizer bar link nuts (2 required)
17	W706899	Engine support crossmember bolts (2 required)
18	W709323	Front insulator bolt
19	W500044	Engine roll restrictor bracket bolts (2 required)
20	W710553	Engine support crossmember nut
21	6P094	Engine support crossmember

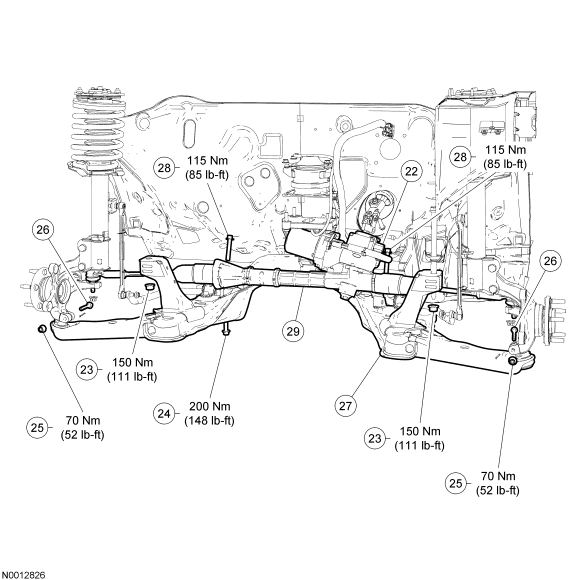

Fig 2: Exploded View Of Steering Gear - Hybrid (1 Of 2 - With Torque Specifications)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	-	Electrical connector (part of 12B637)
23	W520516	Subframe nuts (2 required)
24	W500644	Subframe bolts (2 required)
25	W520213	Ball joint pinch bolt nuts (2 required)
26	W709618	Ball joint pinch bolts (2 required)
27	5025	Subframe
28	W500545	Steering gear bolts (2 required)
29	3F570	Steering gear
