Power Steering Pump - 3.0L (4V): Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

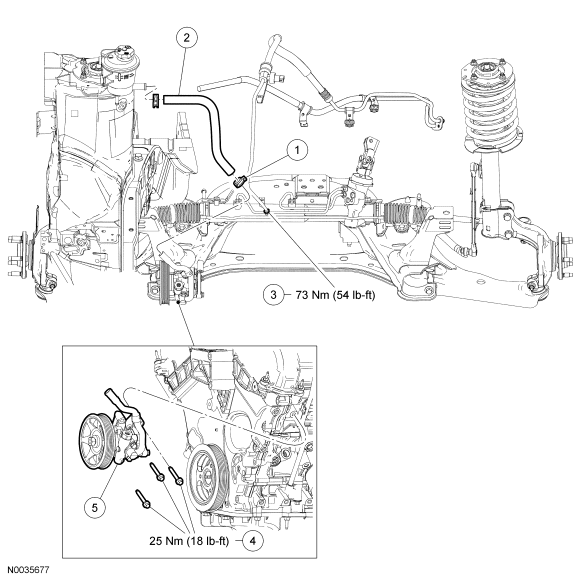

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Suction hose-to-power steering pump hose clamp |
| 2 | 3691-B | Suction hose |
| 3 | - | Power steering pressure line fitting nut (part of 3A719) |
| 4 | W701656 | Power steering pump bolts (3 required) |
| 5 | 3A696-B | Power steering pump |
