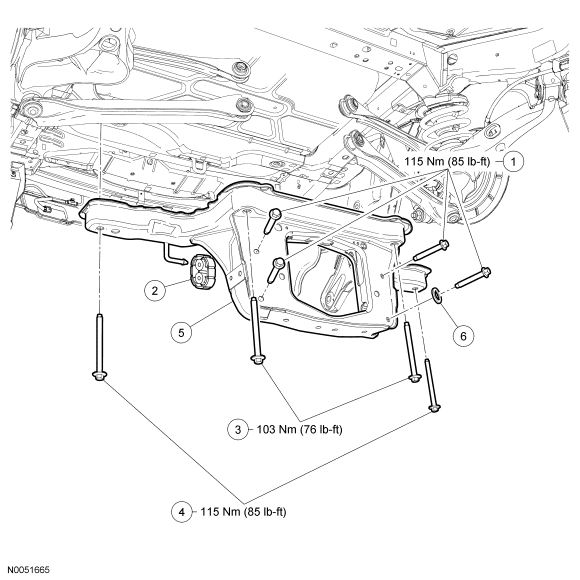

Subframe - Rear: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707646 |
Rear control arm bolts (4 required) |
| 2 |
5F262 |
Exhaust hanger |
| 3 |
W706928 |
Rear subframe front bolts (2 required) |
| 4 |
W706901 |
Rear subframe rear bolts (2 required) |
| 5 |
5C145 |
Rear subframe |
| 6 |
4059 |
Washer |
