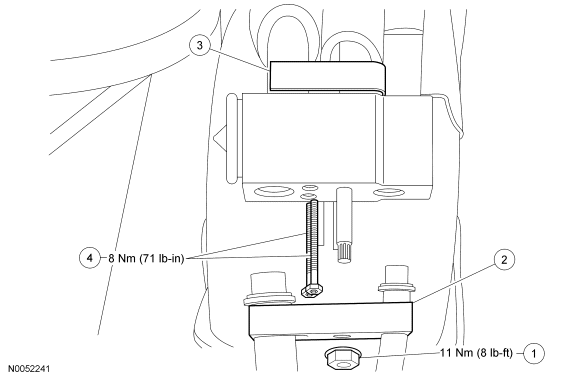

Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707142 |
Thermostatic expansion valve bracket nut |
| 2 |
19866B |
Thermostatic expansion valve lower bracket |
| 3 |
19866A |
Thermostatic expansion valve upper bracket |
| 4 |
7A771 |
Thermostatic expansion valve bracket bolts (2 required) |
