Auxiliary Climate Control Housing: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

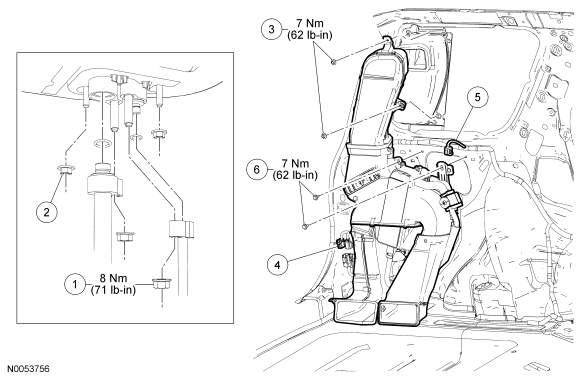

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Auxiliary evaporator line fitting nuts (2 required) |
| 2 | W707137 | Auxiliary line floor pan bracket nut (2 required) |
| 3 | W701694 | Auxiliary climate control upper housing nuts (2 required) |
| 4 | - | Auxiliary harness electrical connector (2 required) |
| 5 | - | Auxiliary thermistor electrical connector |
| 6 | W709735 | Auxiliary climate control housing bolts (2 required) |
