Clutch Disc and Pressure Plate: Notes
WARNING: This page is about a different car, the 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
Clutch Aligner |
308-020 (T74P-7137-K) |
|
|
Flywheel Holding Tool |
303-103 (T74P-6375-A) |
Courtesy of FORD MOTOR CO.

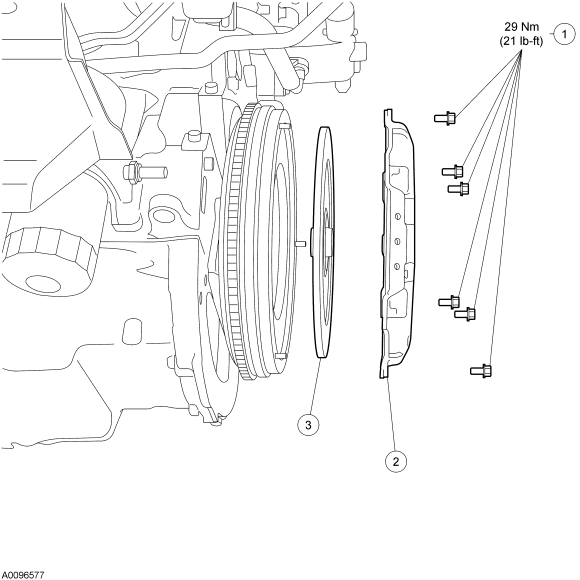

| Item |
Part Number |
Description |
| 1 |
- |
Clutch pressure plate bolts (6 required) |
| 2 |
7563 |
Clutch pressure plate |
| 3 |
7550 |
Clutch disc |
