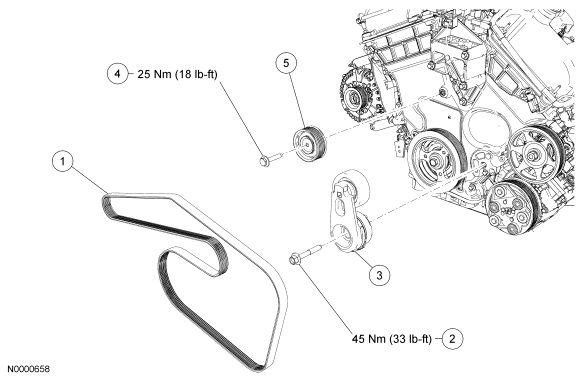

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W701625 | Accessory drive belt tensioner bolt |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | - | Accessory drive belt idler pulley bolt (part of 6C348) |
| 5 | 6C348 | Accessory drive belt idler pulley |
- For additional information, refer to the following procedures.
