Accessory Drive
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

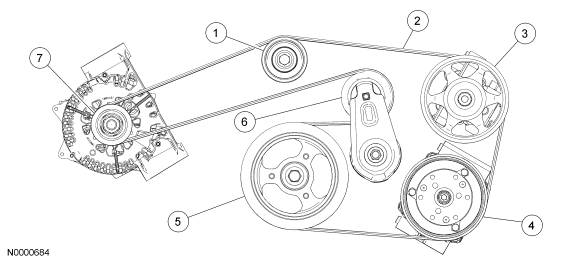

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C348 | Accessory drive belt idler pulley |
| 2 | 8620 | Accessory drive belt |
| 3 | 3A733 | Power steering pump pulley |
| 4 | 2E884 | A/C clutch pulley |
| 5 | 6316 | Crankshaft pulley |
| 6 | 6B209 | Accessory drive belt tensioner |
| 7 | 10344 | Generator pulley |
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A359 | Camshaft drive pulley |
| 2 | 8K543 | Coolant pump drive belt |
| 3 | 8A528 | Coolant pump pulley |
This vehicle is equipped with:
- a V-ribbed serpentine accessory drive belt.
- an automatic drive belt tensioner.
- a V-ribbed coolant pump belt.
New drive belts must be of the same type as originally installed.
Check the drive belt condition at 160,000 km (100,000 miles) then after every 24,000 km (15,000 miles).
