Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

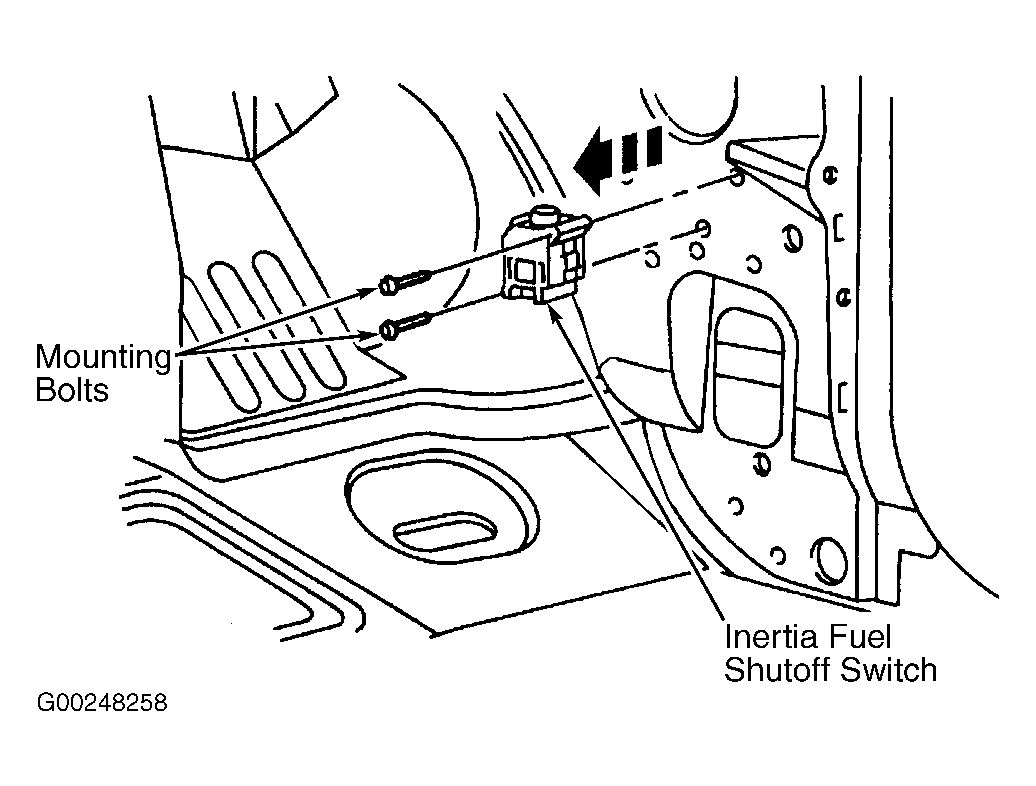

Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES under MISCELLANEOUS. Remove right cowl side trim panel and disconnect Inertia Fuel Shutoff (IFS) switch electrical connector. Remove IFS switch mounting bolts and remove switch. To install, reverse the removal procedure. Tighten IFS switch to specification. See TORQUE SPECIFICATIONS .
